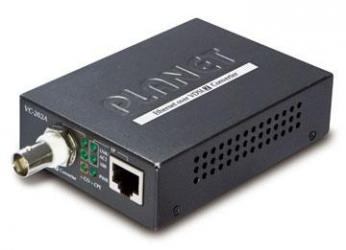

PLANET VC-202A is the high-performance Ethernet-over-Coaxial extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the VC-202A uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the VC-202A utilizes a BNC connector that supports 50ohm or 75ohm coaxial cable with the distance up to 3km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage.
Hardware Specification
Ports • 10/100Base-TX: 1 RJ-45, Auto-negotiation and Auto-MDI / MDI-X
• Coaxial: 1 BNC, female connector
DIP Switch 4 position DIP switch
Functionality • CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target Band Plan
• Selectable target SNR mode
Encoding •DMT (Discrete Multi-Tone) line coding
- ITU-T G.997.1
- ITU-T G.993.1
- ITU-T G.993.2 (Profile 17a Support)
LED Indicators • One Power
• 3 for Coaxial (BNC):
- Green, LNK
- Green, CO mode
- Green, CPE mode
• 2 for per RJ-45 10/100Base-TX port
- Green, LNK / ACT
- Green, Speed
Cabling • Ethernet : 10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft)
• Ethernet : 100Base-TX: 2-pair UTP Cat.5, 5e and 6 up to 100m (328ft)
• Coaxial Cable: 50ohm, RG58A / U, RG58C / U, RG58 / U or equivalent; 75ohm, RG-6 (Distance up to 3.0km)
Performance Asymmetric:
200m ->100/65Mbps
400m ->100/64Mbps
600m ->100/59Mbps
800m ->100/53Mbps
1000m -> 94/44Mbps
1200m -> 84/36Mbps
1400m -> 74/28Mbps
1600m -> 66/19Mbps
1800m -> 60/14Mbps
2000m -> 44/15Mbps
2200m -> 35/12Mbps
2400m -> 32/10Mbps
2600m -> 29/8Mbps
2800m -> 27/6Mbps
3000m -> 25/5Mbps
Symmetric:
200m ->99.7/100Mbps
400m ->100/100Mbps
600m -> 86/91Mbps
800m -> 79/80Mbps
1000m -> 69/66Mbps
1200m -> 60/52Mbps
1400m -> 51/41Mbps
1600m -> 45/36Mbps
1800m -> 40/29Mbps
2000m -> 27/26Mbps
2200m -> 23/24Mbps
2400m -> 22/21Mbps
2600m -> 20/18Mbps
2800m -> 18/15Mbps
3000m -> 17/13Mbps
Dimension (W x D x H) 97 x 70 x 26 mm
Weight 0.2 kg
Power Requirement: 5V DC 2A
Power Consumption: 6.3Watts / 21BTU (maximum)
Standard Conformance
Regulation Compliance: FCC Part 15 Class A, CE
Standards Compliance: IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Full Duplex Pause Frame Flow-Control
ITU-T
- G.993.1
- G.997.1
- G.993.2 (Profile 17a Support)
Environment
Operating:Temperature: 0 ~ 50 Degree C
Humidity: 5~90%, relative humidity (non-condensing)
Storage Temperature: : -10~70 Degree C
Humidity:: 5~90%, relative humidity (non-condensing)
