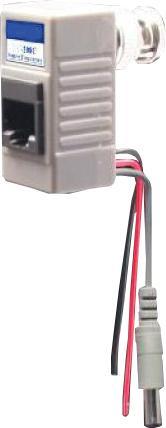

Single Channel Passive Video Transceiver and receiver, Power Transmission, Data Signal
Features
> Single Channel Passive Video Transceiver
> PAL /NTSC Real-time Video Transmission
> Power Transmission, Data Signal
> Exceptional Interference Rejection and Built-in Protection Settings
> Convenient Wiring, Higher Cable Utilization Rate and Lower Composite Wiring Cost
> Compact Size

Technical Specifications:
Frequency: DC To 5MHz
Impedance: Coax BNC:75? UTP:100?
CMRR: 60dB typ
Attenuation: 0.3dB typ
Temperature: Working Temp:-10 +50 Storage Temp:-30 +70
Humidity: 0 - 95%RH
Category Type: UTP CAT5 ?24-16AWG
Impedance: 9? 100M)
Power: Transmission DC12V+Data
UTP Port: Terminal Block
Dimengions: 37*22*42 (mm)
Weight: 28 (g)
