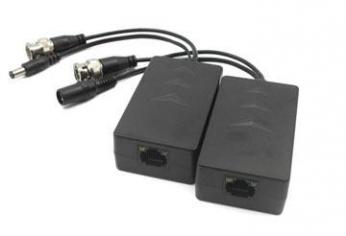

BNC-UTP CVIадаптер PFM801
Features:• Power supply: Input voltage DC24-36V, can provide DC12V8W(max) power supply to remote cameras, simplify engineering wiring.• Transmission effect: Real-time transmission video, no delay, strong anti-interference.• Transmission distance: 300M (max). • Main functions: Use single UTP (CAT-5E and CAT-6) real-time transmit 1-ch HD video signal and 1-ch DC power.• Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.• Appearance structure: ABS engineering plastics shell, small size, use RJ45 standard interface connection mode.Technical Specifications:Properties• Transmission Signal 1 channel HDCVI• Transmission Distance HDCVI: 720P, 400M(max); 1080P, 200M(max)Power Supply• Input Voltage DC24, Distance 0-100M Output Power DC12V 8W, Distance 100-200M Output Power DC12V 6W, Distance 200-300M Output Power DC12V 3W• Input Voltage DC36, Distance 0-300M Output Power DC12V 8W• Category Type UTP CAT5E/6Video Transmission Properties• Coaxial Video Connector BNC-M• Connection Way RJ45• Compatible Format HDCVI/TVI/AHD• Resolution 720P/1080P• Anti-interference >60dbProtection• ESD: 1a contact discharge electricity level 3, 1b air discharge electricity level 3 Per: IEC61000-4-2• Coaxial Cable Connector 2KV(common-code), Per: IEC61000-4-5• UTP Cable Connector 2KV(different-code), 4KV(common-code) Per: IEC61000-4-5Impedance• BNC Male 75 ohms• UTP Cable 100 ohmsPhysical Properties• Dimension(L*W*H) 72.6mm*42.5mm*24.5mm• Shell ABS• Color Black• N.W. 66.4g/57.4gStability• MTBF >10000HEnvironmental• Operating Temperature -10~55?• Storage Temperature -20~70?• Humidity 0~95%(non-condensing)
