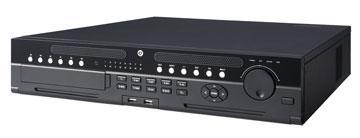

Видеорегистратор 4K IP 64 каналов NVR
Features:
• Max 64 channel IP cameras connection
• Max 384Mbps incoming bandwidth
• Up to 12Mp resolution preview& playback
• 1 VGA+2 HDMI
• Support 8 hot-swap HDDs
• Support RAID 0/1/5/6/10/50/60
• Support N+M hot standby
• Support iSCSI to expand storage space
• Compatible with Dahua SDK and seamless integrated to other platforms
• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
• ONVIF Version 2.4 conformance
Technical Specifications:
System
• Main Processor: Intel Processors
• Operating System: LINUX
Video& Audio
• IP Camera Input: 64 channel
• Two-way Talk: 1channel Input, 1channel Output, RCA
Display
• Interface: 2 HDMI (up to 3840Ч2160), 1 VGA
• Resolution: 3840Ч2160, 1920Ч1080, 1280Ч1024, 1280Ч720, 1024Ч768
• Multi-screen Display: The 1st screen: 1/4/8/9/16/25/36
• The 2nd screen: 1/4/8/9/16
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
• Compression: H.264/MJPEG
• Resolution: 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
• Record Rate: 256Mbps
• Bit Rate: 1~ 20Mbps
• Record Mode: Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
• Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
• Trigger Events: Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
• Video Detection: Motion Detection, MD Zones: 396(22Ч18), Video Loss & Camera Blank
• Alarm Input: 16ch, low level effective, green terminal interface
• Relay Output: 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface
Playback & Backup
• Playback: 128Mbps in Raid 5 mode
• 64Mbps in single HDD mode
• Search Mode: Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
• Backup Mode: USB Device/Network/Internal SATA burner/eSATA Device
Network
• Interface: 2 RJ-45 ports (10/100/1000Mbps)
• Ethernet Port: 2 Ethernet ports joint working or 2 independent 1000Mbps Ethernet ports
• Network Function: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
• Max. User Access: 128 users
• Smart Phone: iPhone, iPad, Android, Windows Phone
Storage
• Internal HDD: 8 SATA III ports, up to 48TB
• HDD Mode: Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)
Auxiliary Interface
• USB: 4 USB ports(3 USB2.0, 1 USB3.0)
• eSATA: 1 eSATA port
• RS232: 1 port, For PC communication& keyboard
• RS485: 1 port, For PTZ control
General
• Power Supply: AC110V~240V, 50~60Hz
• Power Consumption: <40W (Without HDD)
• Working Environment: -10°C~+55°C/10%~90%RH/86~106kpa
• Dimension(WЧDЧH): 486mm(with ears)Ч454.9mm Ч91mm 486mm(with ears)Ч471.8mm Ч91mm
• Weight: 9kg (without HDD)
• Installation: 19” Rack-mounted
