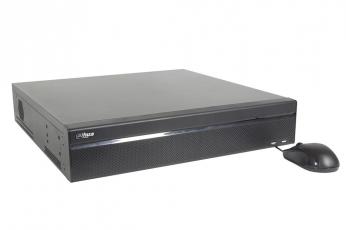

Видеорегистратор IP 64 каналов NVR5864-4K-S2
Features:
• Up to 64 channel IPC input
• H.265/H.264/MJPEG/MPEG4 codec decoding
• Max 320Mbps incoming bandwidth
• Up to 12Mp resolution preview&playback
• Max 16ch@1080P H.265/H.264 decoding
• 1HDMI/VGA simultaneous video output
• 16 channel synchronous realtime playback, GRID interface
• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
• ONVIF Version 2.4 conformance
• 3D intelligent positioning with Dahua PTZ camera
• Support 8 SATA HDDs up to 48TB, 4 USB(2 USB3.0, 2USB2.0)
• Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)
Technical Specifications:
System
• Main Processor Quad-core embedded processor
• Operating System Embedded LINUX
Video& Audio
• IP Camera Input 64 channel
• Two-way Talk 1 channel Input, 1 channel Output, RCA
Display
• Interface 2 HDMI (1 HDMI up to 3840x2160), 1 VGA
• Resolution 3840x2160, 1920Ч 1080, 1280Ч 1024, 1280Ч 720, 1024Ч 768
• Display Split 1/4/8/9/16/25/36
• OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
• Compression H.265/H.264/MJPEG/MPEG4
• Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
• Record Bit Rate 320Mbps
• Bit Rate 16kbps~ 20Mbps per channel
• Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
• Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
• Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
• Video Detection Motion Detection, MD Zones: 396(22Ч 18), Video Loss & Camera Blank
• Alarm Input 16 channel
• Relay Output 6 channel
Playback & Backup
• Sync Playback 1/4/8/16
• Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
• Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
• Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Network
• Ethernet 1 RJ-45 port (10/100/1000Mbps)
• Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
• Max. User Access 128 users
• Smart Phone iPhone, iPad, Android
Storage
• Internal HDD 8 SATA ports, up to 48TB
• HDD Mode Raid 0/1/5/6/10
• External HDD 1 eSATA port
Auxiliary Interface
• USB 4 ports (2 Rear USB3.0, 2 Front USB2.0)
• RS232 1 port, For PC communication&Keyboard
General
• Power Supply Single, AC 100~240V, 50/60 Hz
• Power Consumption 16.7W (without HDD)
• Working Environment -10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension
• (WЧ DЧ H) 2U, 440mmЧ 454mmЧ 95mm
• Weight 6.55KG (without HDD)
