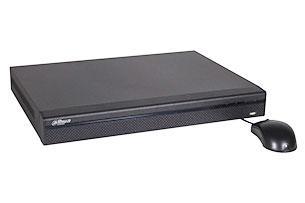

Видеорегистратор IP 16каналов NVR5216-4K-S2
Features:• Up to 16 channel IPC input• H.265/H.264/MJPEG/MPEG4 codec decoding• Max 320Mbps incoming bandwidth• Up to 12Mp resolution preview&playback• Max 8ch@1080P H.265/H.264 decoding• HDMI/VGA simultaneous video output• 16 channel synchronous realtime playback, GRID interface• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc. • ONVIF Version 2.4 conformance• 3D intelligent positioning with Dahua PTZ camera• Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0)• Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)Technical Specifications:System• Main Processor Quad-core embedded processor• Operating System Embedded LINUXVideo& Audio• IP Camera Input 16 channel • Two-way Talk 1 channel Input, 1 channel Output, RCADisplay• Interface 1 HDMI (up to 3840x2160), 1 VGA• Resolution 3840x2160, 1920Ч1080, 1280Ч1024, 1280Ч720, 1024Ч768• Display Split 1/4/8/9/16• OSD Camera title, Time, Video loss, Camera lock, Motion detection, RecordingRecording• Compression H.265/H.264/MJPEG/MPEG4• Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.• Record Rate 320Mbps• Bit Rate 16kbps~ 20Mbps for per channel• Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop• Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 secVideo Detection & Alarm• Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips• Video Detection Motion Detection, MD Zones: 396(22Ч18), Video Loss & Camera Blank• Alarm Input 4 channel• Relay Output 2 channelPlayback & Backup• Sync Playback 1/4/8/16• Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search• Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom• Backup Mode USB Device/Network/Internal SATA burnerNetwork• Ethernet 1 RJ-45 port (10/100/1000Mbps)• PoE 8 ports (IEEE802.3af/at) for PoE model• Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P• Max. User Access 128 users• Smart Phone iPhone, iPad, AndroidStorage• Internal HDD 2 SATA ports, up to 12TBAuxiliary Interface• USB 2 ports (1 Rear USB3.0,1 Front USB2.0)• RS232 1 port, For PC communication&KeyboardGeneral• Single, DC12V/4A• Power Consumption 9.5W (without HDD)• Working Environment -10°C~+55°C / 10%~90%RH / 86~106kpaDimension• (WЧDЧH) 1U, 375mmЧ327mmЧ53mm• 2.6KG for(without HDD)
