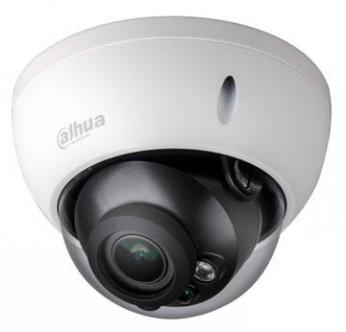

IP Камера HD HDBW2100RP-Z
Features:
• 1/3” 1.3Megapixel progressive scan CMOS
• H.264 & MJPEG dual-stream encoding
• 25/30fps@1.3M(1280Ч 960)
• DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 2.7~12mm motorized varifocal lens
• Max IR LEDs Length 30m
• IP66, IK10, PoE
Technical Specifications:
Camera
• Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
• Effective Pixels 1280(H)x960(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
• Min. Illumination 0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)
• S/N Ratio More than 50dB
• Video Output N/A
Camera Features
• Max. IR LEDs Length 30m
• Day/Night Auto(ICR)/Color/B/W
• Backlight Compensation BLC / HLC / DWDR
• White Balance Auto/Manual
• Gain Control Auto/Manual
• Noise Reduction 3D
• Privacy Masking Up to 4 areas
Lens
• Focal Length 2.7mm~12mm
• Max Aperture F1.4
• Focus Control Auto
• Angle of View H: 92°~28°
• Lens Type Motorized/Fixed Iris
• Mount Type Board-in Type Board-in Type
Video
• Compression H.264/ H.264H/ MJPEG
• Resolution 1.3M(1280Ч 960)/720P(1280Ч 720)/D1(704Ч 576/704Ч 480)/CIF(352Ч 288/352Ч 240)
• Frame Rate Main Stream 1.3M/720P(1 ~ 25/30fps)
• Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate H.264H: 40K ~ 8192Kbps; MJPEG: 40K~16384Kbps
Audio
• Compression N/A
• Interface N/A
Network
• Ethernet RJ-45 (10/100Base-T)
• Wi-Fi N/A
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• Compatibility ONVIF, PSIA, CGI
• Max. User Access 20 usersDH-IPC-HDBW2100R-Z/VF
• Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot N/A
• RS485 N/A
• Alarm N/A
• PIR Sensor Range N/A
General
• Power Supply DC12V, PoE (802.3af)
• Power Consumption <4W <7.5W
• Working Environment -30°C~+60°C, Less than 95% RH
• Ingress Protection IP66
• Vandal Resistance IK10
• Dimensions f122mmЧ 89mm
• Weight 0.5kg
