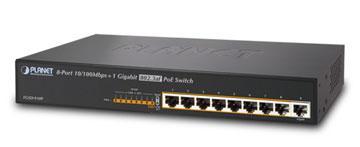

PoE коммутатор 100Mbps 8ch + 1 Gigabituplink
Features:• 8-Port 10/100Mbps Fast Ethernet Switch• 8-Port supports 48V DC power to PoE Powered Device• 1-Port 10/100/1000Mbps Gigabit Ethernet Switch• Complies with IEEE 802.3af Power over Ethernet End-Span PSE• Up to 8 IEEE 802.3af devices powered• Supports PoE Power up to 15.4 watts for each PoE port• 120-watt PoE budget• Auto detects powered device (PD)• Circuit protection prevents power interference between ports• Remote power feeding up to 100m• Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X (Port 1 to Port 8)• Hardware based 10/100/1000Mbps auto-negotiation and Auto MDI/MDI-X (Port 9)• Flow control for full duplex operation and back pressure for half duplex operation• Integrates address look-up engine, supporting 4K absolute MAC addresses• Automatic address learning and address aging• 12-inch desktop size, 1U height• LED indicators for system power, per port PoE ready and PoE activity, speed, Link / Act• 1 silent FAN to provide stable and efficient power performanceTechnical Specifications:• Switch Architecture: Store and Forward switch architecture• MAC Address Table: 4K MAC address table with Auto learning function• Switch Fabric: 3.6Gbps• Switch Throughput: .67Mpps@64Bytes• Flow Control: Back pressure for Half-Duplex. IEEE 802.3x pause frame for full-duplex• Standard Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af• PoE Standard IEEE 802.3af Power over Ethernet / PSE• PoE Power Supply Type: End-Span• Per Port 48V DC, 350mA. max. 15.4 watts• Power Pin Assignment: 1/2(+), 3/6(-)• PoE Power Budget: 120 watts (at room temperature)• Max. number of Class 1 PD: 8• Max. number of Class 2 PD: 8• Max. number of Class 3 PD: 8• Power Requirements: AC 100~240V, 50/60Hz, 2A max.• Power Consumption: 130 watts / 443BTU• Dimensions: (W x D x H) 280 x 180 x 43 mm, 1U height• Weight: 1.7kg
