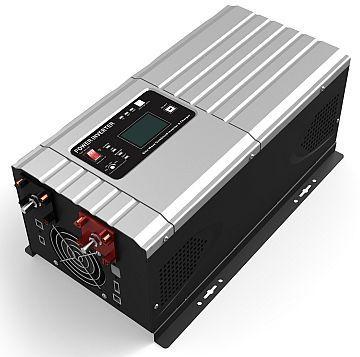

Low Frequency 1kW Pure Sine Wave Inverter with 50A solar charge controller
Designed for External 12VDC battery
INVERTER OUTPUT
Reted Power - 1kW
Surge Rating (20ms) 3.0KVA
Capable Of Starting Electric Motor 1HP
Waveform - Pure sine wave/ same as input (bypass mode)
Nominal Output Voltage - 220V/230V/240VAC(±10% RMS)
Output Frequency - 5OHz/60Hz±0.3Hz
Inverter Efficiency(Peak) - >88%
Line Mode Efficiency - >95%
Power Factor - 1.0
Typical Transfer Time - 10ms(max)
AC INPUT
Voltage - 230VAC
Voltage Range - 155~280VAC
Frequency Range 50Hz/60Hz (Auto sensing) 40~80Hz
BATTERY
Minimum Start Voltage - 10.0VDC /10.5VDC
Low Battery Alarm - 10.5VDC±0.3V
Low Battery Cutoff - 10.0VDC±0.3V
High Voltage Alarm - 16.0VDC±0.3V
High Battery Voltage Recover 15.5VDC±0.3V
Idle Consumption-Search Mode <25W when power saver on
CHARGER
Output Voltage Depends on battery tvpe
Overcharge Protection - 15.7VDC
Maximum Charge Current - 35A
BYPASS & PROTECTION
Input Voltage Waveform - Sine wave (grid or generator)
Nominal Input Frequency 50Hz or 60Hz
Overload Protection
Output Short Circuit Protection
Bypass Breaker Rating 10A
Max Bypass Current 30Amp
SOLAR CHARGER
Maximum PV Charge Current - 50A
DC Voltage - 12V
PWM Range @ Operating Voltage - 15~80VDC
Maximum PV Array Open Circuit Voltage - 90VDC
Maximum Efficiency - >97%
Standby Power Consumption <2W
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D) - 426*206*178 mm
Net Weight (Solar CHG) - 16.5kg
Shipping Dimensions(W*H*D) 570*335*300mm
Shipping Weight (Solar CHG) - 19.3kg
Operation Temperature Range 0°C to 40°C
Storage Temperature -15°C to 60°C
Audible Noise 60dB MAX
Display LED+LCD
