Features:
• RJ45 Interface

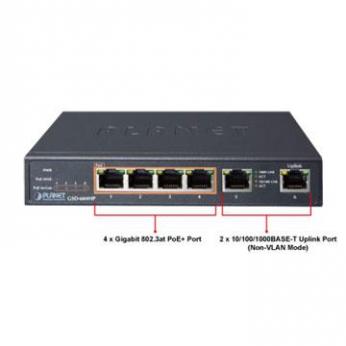

• 6 10/100/1000Mbps Gigabit Ethernet ports
• 4 ports support 54V DC power to PoE powered device
Power over Ethernet
• Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
• Up to 4 IEEE 802.3af/at devices powered
• Supports PoE power up to 30 watts for each PoE port
• 55-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
Switching
• Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Flow control for full duplex operation and back pressure for half duplex operation
• 9216 bytes jumbo packet size support
• Integrates address look-up engine, supporting 8K absolute MAC addresses
• Automatic address learning and address aging
• Supports port-based VLAN and loop protection
Hardware
• LED indicators for PoE ready and LINK/ACT
• One 55V DC power jack
Technical Specifications:
• Network Connector 6-port RJ45 for 10/100/1000BASE-T, auto MDI / MDIX
• PoE Inject Port 4-port with 802.3af/at PoE injector function (port 1 to port 4)
LED Display System:
• Power (Green)
• Per PoE port:
• PoE (Orange, port 1 to port 4)
• PoE max. (Orange)
• Ethernet port:
• 1000 LNK (Green)
• 10/100 LNK (Orange)
• Thermal Fan Fanless design
• Switch Architecture Store and Forward switch architecture
• MAC Address Table 8K MAC address table with auto learning function
• Switch Fabric 12Gbps
• Switch Throughput 8.92Mpps @64 bytes
• Jumbo Packet 9216 bytes
• Flow Control Back pressure for half-duplex
• IEEE 802.3x pause frame for full-duplex
• Power Requirements 55V DC, 1.1A
• ESD Protection 6kV DC
• Power Consumption Max. 60 watts, 204.6 BTU
• Dimensions (W x D x H) 160 x 92.5 x 28 mm
• Weight 374g
Power over Ethernet
• PoE Standard IEEE 802.3af Power over Ethernet/PSE
• IEEE 802.3at Power over Ethernet Plus/PSE
• PoE Power Supply Type End-span
• Power Pin Assignment 1/2(+), 3/6(-)
• PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
• Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
• PoE Power Budget 55 watts
Standard Conformance
• EMI Safety FCC Class B, CE
• Standard Compliance IEEE 802.3 Ethernet
• IEEE 802.3u Fast Ethernet
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3x Flow Control
• IEEE 802.3af Power over Ethernet
• IEEE 802.3at Power over Ethernet Plus
Environment
• Operating Environment 0 ~ 50 degrees C
• Storage Environment -10 ~ 70 degrees C
• Operating Humidity 5 ~ 95%, relative humidity, non-condensing
• Storage Humidity 5 ~ 95%, relative humidity, non-condensing
