Features:

▪ 10X optical zoom, 10X digital zoom
▪ 0.05°/sec Pan/Tile speed available
▪ Max 360°/sec high speed Pan/Tilt motion
▪ IR CUT Day/Night function
▪ OSD menu to set speed dome functions
▪ Provide keyboard shortcuts operation
▪ Privacy zone function
▪ Compact and mini structure

Technical Specifications:

▪ CCD 1/4" Interline Transfer CCD
▪ Max. Pixels: 811(H)×508(V) 410K NTSC, 795(H)×596(V) 470K PAL
▪ Effective Pixels: 768(H)×494(V) 380K NTSC 752(H)×582(V) 440K PAL
▪ Horizontal Res.: 500 TVL(Color),570 TVL(B/W)
▪ S/N Ratio: 50dB(AGC Off)
▪ Zoom: 10X optical zoom, 10X digital zoom
▪ Focal Length: F1.8, f=3.8~38mm
▪ Min. Illumination: 0.7Lux (Color), 0.02Lux (B/W), 50 IRE
▪ Day & Night: Auto / Day / Night (ICR)
▪ Focus: Auto / Manual / Semi-Auo
▪ Iris: Auto / Manual
▪ Shutter Speed: 128X~1/120000 sec
▪ AGC: Normal / High / Off
▪ White Balance: Auto / Manual / (Red, Blue Gain Adjustable)
▪ BLC: Low / Middle / High / Off
▪ Flickerless: Selectable
▪ SSNR: Low / Middle / High / Off
▪ Pan / Tilt Range: Pan: 360°(Endless), Tilt: 180°(Auto Flip),95°(Normal)
▪ Pan / Tilt Speed Preset: 360°/sec,Swing: 1~180°/sec
▪ Manual: 0.05~360°/sec(Proportional to zoom)
▪ Preset: 127 Preset ( Lable, Camera Image Setting )
▪ Pattern▪ 4 Patterns, 1200 commands ( About 5 minutes)/Pattern
▪ Swing: 8 Swing
▪ Group: 8 Groups ( 20 actions entities per group )
▪ Other Functions: Auto flip, Auto parking, Power up action etc
▪ Communication: RS-485
▪ Protocol: Pelco-D, Pelco-P selectable
▪ Privacy Zone: 4 zones
▪ Alarm Input: 4 Inputs
▪ OSD: Menu / PTZ information etc
▪ Rated Power: DC12V / 0.8A

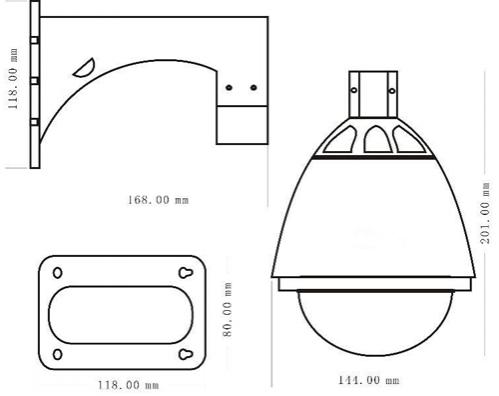

▪ Dimmension: Dome: φ115, Housing: φ140.97×41(H)mm
▪ Weight: About 1.5 Kg
▪ Operating Temp: 0℃~40℃
