Application

Convenient to Share 3G Mobile Connection Via the SIM card installed in the WNRT-320GS, you can easily enjoy surfing the Internet through 3G network. The WNRT-320GS applies 802.11n technology to provide stronger wireless signal, higher data transmission rate than 802.11b/g devices. Furthermore, featuring the latest security and firewall functions, the WNRT-320GS helps to prevent unauthorized access or invasion. You can easily establish the secure wireless network and enjoy high speed Internet transmission anywhere, anytime.

Features

• 3G / 3.75G Mobile Internet Connection
– Dual Network Interfaces: WAN port for cable or wired xDSL service + 3G mobile connection
– Compatible with UMTS / HSPA Mobile Network
• Industrial Compliant Wireless LAN & LAN
– Compliant with IEEE 802.11n wireless technology capable of up to 150Mbps data rate
– Backward compatible with 802.11b/g standard
– Equipped with one 10/100Mbps RJ-45 Ethernet port for LAN/WAN, Auto MDI/MDI-X supported
• Wireless Network Range Extender
– Multiple Wireless Modes: AP, WDS, Repeater, Universal Repeater, Client
– Supports WMM (Wi-Fi Multimedia), Wireless QoS
– Supports IAPP (Inter Access Point Protocol), Wireless Roaming
• Fixed-network Broadband Router
– Supported Internet types: Dynamic IP/ Static IP/ PPPoE/ L2TP/ PPTP
– Supports Static & Dynamic (RIP1 and 2) Routing
– Supports IP / MAC-Based Bandwidth Control
– Supports 802.1d STP & IGMP Proxy
• Secure Network Connection
– Advanced security: 64/128-bit WEP, WPA-Enterprise/ WPA2-Enterprise and WPA-PSK/WPA2-PSK
with TKIP/AES Encryption, 802.1x Authentication
– Built-in NAT firewall features with Port/ IP/ MAC/ URL Filtering, and DoS protection
– Supports 802.1Q VLAN
• Advanced Networking Function for Specific Application
– Supports multiple sessions IPSec, L2TP, PPTP, and IPv6 VPN pass-through
– Supports Port Forwarding, DMZ, UPnP and Dynamic DNS for various networking applications
– Supports DHCP Server
• Easy to Install & Management
– Web-Based UI and setup Wizard for easy configuration
– System status monitoring includes DHCP Client and System Log
• Flexible Application & Business-oriented design
– Portable and Pocket-sized design for true mobility
– Hardware switchable operation modes: Router / AP / Client
– One-touch Wi-Fi Protected Setup (WPS)
– Built-in rechargeable Li-ion battery

Hardware Specification

• Interface LAN/WAN: 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port

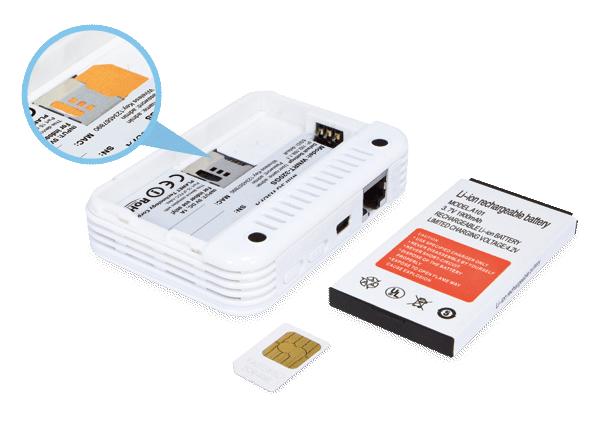

• 1 x SIM card interface for plug SIM card, 1 x mini USB port for charging battery
• Antenna Gain: 1 x Internal 2dBi Antenna
• Orientation: Omni-directional
• Button / Switch Front panel (from left to right): ¦ Mode Selection Switch (Router / Client / AP) ¦ WPS Button ¦ Power On/Off Switch
• Rear panel: ¦ Reset button (Push for above 5 seconds to reset to factory default settings)
• LED Indicators: Power, Wireless LAN Active, WPS Active, WAN/LAN Link, 3G Active, Battery Charge
• Material: Plastic
• Dimension (W x D x H) 88 x 62 x 20 mm
• Weight With battery: 102g
• Without battery: 60g
• Battery: Built-in Rechargeable Li-ion Battery (3.7V, 1900mAh)
• Power Requirement: DC 5V , 1A maximum, connected through mini-USB connector
• Power Adapter: AC Input: 100~240V AC (50/60Hz)
• DC Output: 5V with max. 1A current
• Standard Accessory: Power Adapter x 1, USB Cable x 1, Ethernet Cable x 1, Li-ion Battery x 1, CD-ROM x 1, Quick Guide x 1

3G interface Specification
• Network Type: WCDMA / HSDPA / HSUPA
• Transmit Rate: Up to Download 7.2Mbps, Uplink 5.76Mbps
• Frequency Range: 2100MHz

Wireless interface Specification:
• Standard: Compliant with IEEE 802.11b/g/n
• Frequency Band: 2.4 ~ 2.4835GHz
• Extend Frequency: DSSS
• Modulation Type: DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
• Data Transmission Rates: 11n: Up to 150Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
• Transmission Distance Indoor up to 100m
• outdoor up to 300m (Depending on the environment)
• Channel• America / FCC: 2.412~2.462GHz (11 Channels)
• Europe / ETSI: 2.412~2.472GHz (13 Channels)
• Japan / TELEC: 2.412~2.484GHz (14 Channels)
• Max. RF Power 20 dBm (EIRP)
• Receive Sensitivity: 135M: -68dBm@10% PER
• 54M: -68dBm@10% PER
• 11M: -85dBm@8% PER

Software Features:
Operation Mode: ¦ AP ¦ Router ¦ Client
(Switchable by Hardware)
• Wireless Mode: AP, WDS, Repeater (WDS+AP), Universal Repeater (AP+Client)
• Encryption Security WEP (64/128-bit) encryption security, WPA-Enterprise / WPA2-Enterprise (TKIP/AES), WPA-Personal / WPA2-Personal (TKIP/AES), 802.1x Authentication
• Wireless Security: Provides wireless LAN ACL (Access Control List) filtering, Wireless MAC address filtering, Supports WPS (Wi-Fi Protected Setup), Enable / Disable SSID Broadcast
• Wireless Advanced: WMM (Wi-Fi Multimedia): 802.11e Wireless QoS, IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming, Provides Wireless Statistics
• Internet Connection Type: Shares data and Internet access, supporting the following internet access types:¦ 3G, ¦ PPPoE, ¦ Dynamic IP, ¦ Static IP, ¦ PPTP, ¦ L2TP
• Firewall: NAT firewall with SPI (Stateful Packet Inspection), Built-in NAT server supporting Port Forwarding, and DMZ, Built-in firewall with IP address / MAC address / Port / URL filtering, Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection, Supports 802.1Q VLAN up to 4
• Routing Protocol: Static / Dynamic (RIP1 and 2) Routing
• VPN Pass-through: PPTP, L2TP, IPSec, IPv6
• LAN: Built-in DHCP server supporting static IP address distributing, Supports UPnP, Dynamic DNS, Supports IGMP Proxy, Supports 802.1d STP (Spanning Tree), IP / MAC-Based Bandwidth Control
• System Management: Web-Based (HTTP) management interface, SNTP time synchronize, Easy firmware upgrade, System Log supports Remote Log

Standards Conformance:
• IEEE Standards IEEE 802.11n (1T1R, up to 150Mbps), IEEE 802.11g, IEEE 802.11b, IEEE 802.11i, IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control
• Others Protocols and Standards: CSMA / CA, CSMA / CD, TCP / IP, DHCP, ICMP, NAT, PPPoE, SNTP
