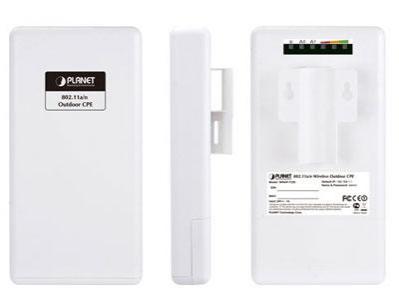

5GHz 300Mbps Wireless LAN Outdoor
Features: • Compliant with IEEE 802.11n wireless technology capable of up to 300Mbps data rate• Backward compatible with 802.11a standard• Equipped with 10/100Mbps RJ-45 ports for LAN and WAN with auto MDI/ MDI-X supported• Supported connection types in WISP mode: Dynamic IP/ Static IP/ PPPoE• Supports virtual server and DMZ for various networking applications• Supports DHCP server, UPnP and Planet DDNS• Built-in 14dBi dual-polarization antenna• High output power up to 500mW with multiply-adjustable transmit power control• IP55 enclosure• Passive Power over Ethernet design• Operating temperature: -20~70°C• Multiple operation modes: Bridge and WISP• Multiple wireless modes: AP, Client CPE (WISP), WDS PtP, WDS PtMP and Repeater• Supports multiple-SSIDs to allow users to access different networks through a single AP• Supports WMM (Wi-Fi Multimedia)• Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES) and 802.1x RADIUS authentication• Supports MAC address filtering• Web-based UI and Quick Setup Wizard for easy configuration• Planet Smart Discovery Utility allows administrator to discover and locate each AP• SNMP-based management interface• System status monitoring includes DHCP Client and System LogTechnical Specifications: • Standard Support: IEEE 802.11a/n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x• Memory: 64 Mbytes DDR SDRAM, 16 Mbytes Flash• PoE: Passive PoE• Interface:Wireless IEEE802.11a/n, 2T2R• PoE LAN (LAN 1): 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE• LAN 2: 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE pass-through• Antenna:Built-in 14dBi dual-polarization antenna, Horizontal: 30 degrees, Vertical: 20 degrees• Wireless Technology: IEEE 802.11a, IEEE 802.11n, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps , IEEE 802.11n (20MHz): up to 150Mbps , IEEE 802.11n (40MHz): up to 300Mbp• Media Access Control: CSMA/CA• Modulation: Transmission/Emission type: OFDM, Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM• Frequency Band 5.180GHz ~ 5.825GHz• Operating Channel: 5.180GHz CH36, 5.200GHz CH40, 5.220GHz CH44, 5.240GHz CH48, 5.260GHz CH52, 5.280GHz CH56, 5.300GHz CH60, 5.320GHz CH64, 5.500GHz CH100, 5.520GHz CH104, 5.540GHz CH108, 5.560GHz CH112,l 5.580GHz CH116, 5.600GHz CH120, 5.620GHz CH124, 5.640GHz CH128, 5.660GHz CH132, 5.680GHz CH136, 5.700GHz CH140, 5.745GHz CH149, 5.765GHz CH153,l 5.785GHz CH157 , 5.805GHz CH161, 5.825GHz CH165, The 24 channels are defined by the theory. The actual application will vary based on the regulation in different regions and countries.• RF Output Power (Max.): IEEE 802.11a: up to 25 ±1dBm, IEEE 802.11n: up to 24 ±1dBm• Receiver Sensitivity (dBm),IEEE 802.11a: -94dBm, IEEE 802.11n: -93dBm• Output Power Control: 12~27dBm• Power Consumption: 12W• Power Requirements: LAN: 24V DC, 1A/ Passive PoE, Pin 4,5 V DC+, Pin 7,8 V DC-, Pin 3 Reset• LAN: Built-in DHCP server supporting static IP address distribution, Supports 802.1d STP (Spanning Tree)• WAN: Static IP, Dynamic IP, PPPoE• Operating Mode: Bridge, WISP• Firewall: NAT firewall with SPI (Stateful Packet Inspection), Built-in NAT server supporting virtual server and DMZ, Built-in firewall with port/ IP address/ MAC/ URL filtering• Wireless Mode: AP, Client, WDS PTP, WDS PTMP, WDS Repeater (AP+WDS)• Channel Width: 20MHz / 40MHz• Wireless Isolation: Enable to isolate each connected wireless client to let them cannot access mutually• Encryption Type: 64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x• Channel Width:: 20MHz / 40MHz• Wireless Isolation: Enable to isolate each connected wireless client to let them cannot access mutually• Encryption Type: 64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x• Multiple SSIDs: Up to 8• Max. Wireless Client: 25• Max. WDS APs: 8• Max. Wired Clients: 60• WMM: Supports Wi-Fi multimedia• QoS: Supports Quality of Service for bandwidth control• NTP: Network Time Management• Self Healing: Supports Schedule Reboot• Management: Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS, and SNMP• Diagnostic Tool: System Log, Ping Watchdog• Operating Temperature: -20~70°C• Operating Humidity: 10~95% non-condensing• IP Level: IP55• Regulatory: CE, FCC, RoHS• Standard Accessories: WNAP-7325 x 1, PoE Injector x 1, Power Cord x 1, Plastic Strap x 1, Quick Installation Guide x 1• Remark: means future firmware supports
