Price (inc. VAT): 117.37 €
Ask for the balance

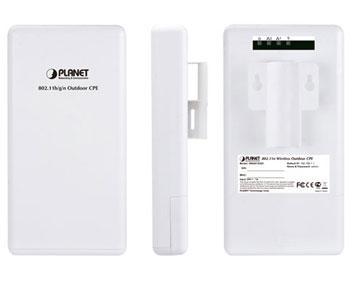

2.4GHz 300Mbps Wireless LAN Outdoor
Features: • Industrial Compliant Wireless LAN and LAN• Compliant with IEEE 802.11n wireless technology capable of up to 300Mbps data rate• Backward compatible with 802.11g standard• Equipped with 10/100Mbps RJ-45 ports for LAN and WAN with auto MDI/ MDI-X supported• Supported connection types in WISP mode: Dynamic IP/ Static IP/ PPPoE• Supports virtual server and DMZ for various networking applications• Supports DHCP server, UPnP and Planet DDNS• Built-in 12dBi dual-polarization antenna• High output power up to 500mW with multiply-adjustable transmit power control• IP55 enclosure• Passive Power over Ethernet design• Operating temperature: -20~70°C• Multiple operation modes: Bridge and WISP• Multiple wireless modes: AP, Client CPE (WISP), WDS PtP, WDS PtMP and Repeater• Supports multiple-SSIDs to allow users to access different networks through a single AP• Supports WMM (Wi-Fi Multimedia)• Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES) and 802.1x RADIUS authentication• Supports MAC address filtering• Web-based UI and Quick Setup Wizard for easy configuration• Planet Smart Discovery Utility allows administrator to discover and locate each AP• SNMP-based management interface• System status monitoring includes DHCP Client and System LogTechnical Specifications: • Standard Support: IEEE 802.11b/g/n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x• Memory: 64 Mbytes DDR SDRAM, 16 Mbytes Flash• PoE Passive PoE• Interface:Wireless IEEE802.11b/g/n, 2T2R• PoE LAN (LAN 1): 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE• LAN 2: 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE pass-through• Antenna Built-in 12dBi dual-polarization antenna, Horizontal: 30 degrees, Vertical: 20 degrees• Wireless Technology: IEEE 802.11b/g, IEEE 802.11n• Data Rate: IEEE 802.11b: 1, 2, 5.5, 11Mbps, IEEE 802.11g: up to 54Mbps, IEEE 802.11n (20MHz): up to 150Mbps, IEEE 802.11n (40MHz): up to 300Mbps• Media Access Control: CSMA/CA• Modulation: Transmission/Emission type: OFDM, Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM• Operating Channel: America/ FCC: 2.414~2.462GHz (11 Channels), Europe/ ETSI: 2.412~2.472GHz (13 Channels), Japan/ TELEC: 2.412~2.484GHz (14 Channels)• RF Output Power (Max.): IEEE 802.11b: up to 25 ± 1dBm, IEEE 802.11g: up to 22 ± 1dBm, IEEE 802.11n: up to 21 ± 1dBm• Receiver Sensitivity (dBm), IEEE 802.11b: -94dBm, IEEE 802.11g: -91dBm, IEEE 802.11n: -89dBm • Output Power Control: 12~27dBm• Power Consumption: 12W• Power Requirements: LAN: 24V DC, 1A/ Passive PoE, Pin 4,5 V DC+, Pin 7,8 V DC-, Pin 3 Reset• LAN: Built-in DHCP server supporting static IP address distribution, Supports 802.1d STP (Spanning Tree)• WAN: Static IP, Dynamic IP, PPPoE• Operating Mode: Bridge, WISP• Firewall: NAT firewall with SPI (Stateful Packet Inspection), Built-in NAT server supporting virtual server and DMZ, Built-in firewall with port/ IP address/ MAC/ URL filtering• Wireless Mode: AP, Client, WDS PTP, WDS PTMP, WDS Repeater (AP+WDS)• Channel Width: 20MHz / 40MHz• Wireless Isolation: Enable to isolate each connected wireless client to let them cannot access mutually• Encryption Type: 64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x• Channel Width:: 20MHz / 40MHz• Wireless Isolation: Enable to isolate each connected wireless client to let them cannot access mutually• Encryption Type: 64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x• Multiple SSIDs: Up to 8• Max. Wireless Client: 25• Max. WDS APs: 8• Max. Wired Clients: 60• WMM: Supports Wi-Fi multimedia• QoS: Supports Quality of Service for bandwidth control• NTP: Network Time Management• Self Healing: Supports Schedule Reboot• Management: Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS, and SNMP• Diagnostic Tool: System Log, Ping Watchdog• Operating Temperature: -20~70°C• Operating Humidity: 10~95% non-condensing• IP Level: IP55• Regulatory: CE, FCC, RoHS• Standard Accessories: WNAP-6325 x 1, PoE Injector x 1, Power Cord x 1, Plastic Strap x 1, Quick Installation Guide x 1• Remark: means future firmware supports
