Price (inc. VAT): 177.87 €
In stock

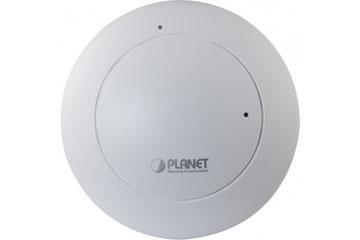

1200Mbps wireless access point
Features:• Complies with IEEE 802.11ac (draft 2.0) and IEEE 802.11a/b/g/n standards• 1 x 10/100/1000Base-T Port with 1-port PoE (PD, Powered Device)• IEEE 802.3at Power over Ethernet designRF Interface Characteristics• Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) concurrent dual band for more efficiency of carrying high load traffic• 2T2R MIMO technology for enhanced throughput and coverage• Provides multiple adjustable transmit power control• High speed up to 1.2Gbps (300Mbps for 2.4GHz + 867Mbps for 5GHz) wireless data rateComprehensive Wireless Advanced Features• Multiple Wireless Modes: AP, Client, WDS PtP/ PtMP, WDS Repeater, Universal Repeater• Supports up to 10 multiple-SSIDs (2.4GHz+5GHz) to allow users to access different networks through a single AP• Supports WMM (Wi-Fi Multimedia) and wireless QoS to enhance the efficiency of multimedia application• Supports IAPP (Inter Access Point Protocol) and wireless roaming to enable clients to roam across different wireless networks• Supports 5-level Transmitting Power Control to adapt various environments• Supports wireless schedule to automatically enable or disable the wireless function based on predefined scheduleSecure Network Connection• Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES encryption) and 802.1x Radius Authentication• Supports MAC address filteringEasy Installation & Management• Flexible deployment with standard 802.3at PoE/ PD supported• Web-based UI and Quick Setup Wizard for easy configuration• Remote Management allows configuration from a remote site• SNMP-based management interface• System status monitoring includes DHCP Client and System LogTechnical Specifications:• Interfaces LAN 1 x 10/100/1000Base-T RJ45 port• Auto-negotiation and Auto MDI/MDI-X• Antennas Gain 2 x 2.4GHz 2.5dBi PCB antenna• 2 x 5GHz 4dBi PCB antenna• Reset Button Reset button on the top cover• Press over 7 seconds to reset the device to factory default• LED Indicators PWR • Allow LED to turn off via software control• Material Plastic• Dimensions (F x H) 194 x 49 mm• Weight 300 ±5g• Power Requirements 802.3at PoE, 48-56V DC input• Power Consumption 20W (max.)• Mounting Ceiling Mount• Wireless Interface Specifications• Standard IEEE 802.11ac (Draft 2.0) 5GHz• IEEE 802.11a/n 5GHz• IEEE 802.11b/g/n 2.4GHz• Antenna Structure 802.11ac: 2T2R MU-MIMO• 802.11n: 2T2R MIMO• Modulation DSSS• Data Modulation 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)• 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)• 802.11b: DSSS (DBPSK / DQPSK / CCK)• Band Mode 2.4GHz / 5GHz concurrent mode• Frequency Range 2.4GHz: America/ FCC: 2.412~2.462GHz• Europe/ ETSI: 2.412~2.484GHz• 5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz• Europe/ ETSI: 5.180~5.240GHz• Operating Channels 2.4GHz: America/ FCC: 1~11• Europe/ ETSI: 1~13• 5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165• Europe/ ETSI: 36, 40, 44, 48• 5GHz channel list will vary in different countries according to their regulations.• Channel Width 802.11ac: 20/40/80MHz 02.11n: 20/40MHz• Data Transmission Rates 802.11ac (VHT20, Nss2-MCS8): Up to 173.3Mbps• 802.11ac (VHT40, Nss2-MCS9): Up to 400Mbps• 802.11ac (VHT80, Nss2-MCS9): Up to 867Mbps• 802.11n (HT40): 270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps (dynamic)• 802.11n (HT20): 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps (dynamic)• 802.11g: 54/48/36/24/18/12/9/6Mbps (dynamic)• 802.11b: 11/5.5/2/1Mbps (dynamic)• Transmission Distance 802.11ac (draft): up to 30m• 802.11n: up to 70m• 802.11g: up to 30m• The estimated transmission distance is based on the theory. The actual distance will vary in different environments.• Max. RF Power 5GHz:• 802.11ac (VHT20): 15.5dBm• 802.11ac (VHT40): 15.5dBm • 802.11ac (VHT80): 15.5dBm • 802.11n (HT20): 15.5dBm • 802.11n (HT40): 15.5dBm• 802.11a: 15.5dBm2.4GHz:• 802.11n: 17 ±2.5dBm• 802.11b/g: 20 ±2.5dBmReceive Sensitivity 5GHz:• 802.11ac (VHT20): -91dBm @ Nss1-MCS0, -64dBm @ Nss2-MCS8• 802.11ac (VHT40): -89dBm @ Nss1-MCS0, -59dBm @ Nss2-MCS9• 802.11ac (VHT80): -86dBm @ Nss1-MCS0, -56dBm @ Nss2-MCS9• 802.11n (HT20): -92dBm @ MCS0, -71dBm @ MCS7• 802.11n (HT40): -89dBm @ MCS0, -66dBm @ MCS15• 802.11a: -93 @ 6Mbps, -75dBm @ 54Mbps2.4GHz:• 802.11n 20MHz (MCS7): -69dBm @10% PER• 802.11n 40MHz (MCS15): -66dBm @10% PER• 802.11g (54Mbps): -74dBm @10% PER• 802.11b (11Mbps): -88dBm @10% PERSoftware Features• Wireless Mode, Universal Repeater (AP+Client)• Repeater (WDS+AP)• AP (Access Point)• WDS PTP (Point to Point)• WDS PTMP (Point to Multipoint)• Client• Encryption Security, WEP (64/128-bit) encryption security• WPA / WPA2 (TKIP/AES)• WPA-PSK / WPA2-PSK (TKIP/AES)• Wireless Security Provides wireless LAN ACL (Access Control List) filtering• Wireless MAC address filtering• Supports WPS (Wi-Fi Protected Setup)• Enable/ Disable SSID Broadcast• Wireless Advanced WMM (Wi-Fi Multimedia): 802.11e Wireless QoS• Multiple SSID: up to 5 at 2.4GHz and 5GHz, respectively• Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other• IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming• Provides Wireless Statistics• Max. Clients Wire: 253• 2.4GHz Wireless: 32• 5GHz Wireless: 32• LAN Built-in DHCP server supporting static IP address distributing• Supports UPnP• Supports 802.1d Spanning Tree• System Management Web-based (HTTP) management interface• SNTP time synchronize• Easy firmware upgrade• Supports Scheduling Reboot• Supports Smart Discovery UtilityStandards Conformance• IEEE Standards IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps)• IEEE 802.11n (2T2R, up to 300Mbps)• IEEE 802.11g• IEEE 802.11b• IEEE 802.11i• IEEE 802.3 10Base-T• IEEE 802.3u 100Base-TX• IEEE 802.3ab 1000Base-T• IEEE 802.3x Flow Control• Other Protocols and Standards CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTPEnvironment & Certification• Temperature Operating: 0 ~ 50 degrees C• Storage: -40 ~ 70 degrees C• Humidity Operating: 10 ~ 90% (non-condensing)• Storage: 5 ~ 90% (non-condensing)• Regulatory FCC Part 15B & 15C, IC, RoHS
