Price (inc. VAT): 268.62 €
Ask for the balance

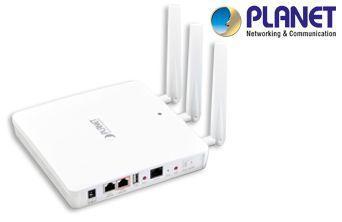

1750Mbps enterprise wireless access point
Features:• Complies with IEEE 802.11ac (draft 2.0) and IEEE 802.11a/b/g/n standards• 2 x 10/100/1000BASE-T port with PoE supporting 802.3at and 802.3af PSE (Power Sourcing Equipment)• IEEE standard 802.3af/at PoE designRF Interface Characteristics• Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) concurrent dual band for more efficiency of carrying high load traffic• 3T3R MIMO technology for enhanced throughput and coverage• Provides multiple adjustable transmit power control• High speed up to 1.75Gbps (450Mbps for 2.4GHz + 1300Mbps for 5GHz) wireless data rateComprehensive Wireless Advanced Features• Multiple Wireless Modes: AP,WDS PtP/ PtMP, and WDS Repeater• Supports up to 32 multiple-SSIDs (2.4GHz + 5GHz) to allow users to access different networks through a single AP• Supports VLAN function to limit the clients to access the specific internal network resource• Supports WMM (Wi-Fi Multimedia) and wireless QoS to enhance the efficiency of multimedia application• Supports wireless schedule to automatically enable or disable the wireless function based on predefined scheduleSecure Network Connection• Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES encryption) and 802.1x Radius Authentication• Supports MAC address filteringEasy Installation & Management• Flexible deployment with standard 802.3at PoE/ PD supported• Web-based configuration of HTTP/HTTPS/SSH/CLI• SNMP-based management interface• System status monitoring includes DHCP Client and System LogTechnical Specifications:• Interfaces LAN 2 x 10/100/1000BASE-T RJ45 port• Auto-negotiation and auto MDI/MDI-X• Antennas Gain 3 x 2dBi SMA antenna• Reset Button Press over 5 seconds to reset the device to factory default• LED Indicators PWR • Allow LED to turn off via software control• Material Plastic• Dimensions (W x D x H) 182 x 182 x 30 mm• Weight 470g• Power Requirements DC Input: 12V DC, 4A• PoE Input: IEEE 802.3at PoE+, 48~56V DC in-line power• Power Consumption 20W (without PSE)• ESD Protection ±8kV air-gap discharge, ±4kV contact discharge• Mounting Wall mount / Desktop• Wireless Interface Specifications• Standard IEEE 802.11ac (draft 2.0) 5GHz• IEEE 802.11a/n 5GHz• IEEE 802.11b/g/n 2.4GHz• Operating Channels 2.4GHz America/ FCC: 1~11• Europe/ ETSI: 1~13• 5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165• Europe/ ETSI: 36, 40, 44, 48• 5GHz channel list will vary in different countries according to their regulations.• Antenna Structure 802.11ac: 3T3R MU-MIMO• 802.11n: 3T3R MIMO• Modulation DSSS• Data Modulation 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)• 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)• 802.11b: DSSS (DBPSK / DQPSK / CCK)• Band Mode 2.4G / 5G concurrent mode• Frequency Range 2.4GHz: America/ FCC: 2.412~2.462GHz• Europe/ ETSI: 2.412~2.484GHz• 5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz• Europe/ ETSI: 5.180~5.240GHz• Channel Width 802.11ac: 20/40/80MHz• 802.11n: 20/40MHz• Transmission Distance 802.11ac (draft): up to 30m• 802.11n: up to 70m• 802.11g: up to 30m• The estimated transmission distance is based on the theory. The actual distance will vary in different environments.Max. RF Power 5GHz:• 802.11ac (VHT20/40/80): 27.5dBm @MCS0• 802.11ac (VHT20/40/80): 22.5dBm @MCS7• 802.11ac (VHT20/40/80): 19.5dBm @MCS9• 802.11n (HT20/40): 27.5dBm @MCS0/MCS8• 802.11n (HT20/40): 22.5dBm @MCS7/MCS15• 802.11a: 26.5dBm @6Mbps 22.5dBm @54Mbps2.4GHz:• 802.11n (HT20/40): 27.5dBm @MCS0• 802.11n (HT20/40): 22.5dBm @MCS7• 802.11g: 27.5dBm @6Mbps• 802.11g: 23.5dBm @54Mbps• 802.11b: 27.5dBm @1MbpsReceive Sensitivity 5GHz:• 802.11ac (VHT20): -64dBm @MCS9• 802.11ac (VHT40): -61dBm @MCS9• 802.11ac (VHT80): -58dBm @MCS9• 802.11n (HT20): -87dBm @MCS0, -67dBm @MCS7• 802.11n (HT40): -84dBm @MCS0, -63dBm @MCS7• 802.11a: -71dBm @54Mbps2.4GHz:• 802.11n (HT20/40): -87dBm @MCS0• 802.11n (HT20/40): -67dBm @MCS7• 802.11g: -70dBm @54Mbps• 802.11b: -90dBm @1MbpsSoftware Features• Wireless Mode AP (Access Point) • Repeater (WDS + AP) • WDS PTP (Point to Point)• WDS PTMP (Point to Multipoint)• Encryption Security WEP (64/128-bit) encryption security• WPA / WPA2 (TKIP/AES)• WPA-PSK / WPA2-PSK (TKIP/AES)• 802.1x Authenticator• Wireless Security Wireless MAC address filtering• Supports WPS (Wi-Fi Protected Setup)• Enable/ Disable SSID Broadcast• Wireless Advanced WMM (Wi-Fi Multimedia), Max. Associated Station Number• Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz• Wireless Isolation: Enable it to isolate each connected wireless client from communicating with each other WLAN L2 isolation (AP mode)Provides wireless statistics• Max. Clients Wired: 253• 2.4GHz Wireless: 50• 5GHz Wireless: 50• LAN Built-in DHCP server supporting static IP address distribution• Supports UPnP• Supports 802.1Q VLAN• System Management Web-based (HTTP) management interface• SNTP synchronization• Easy firmware upgrade• Supports scheduling reboot• Supports Smart Discovery Utility• Standards Conformance• IEEE Standards IEEE 802.11ac (draft 2.0, 3T3R, up to 1300Mbps)• IEEE 802.11n (3T3R, up to 450Mbps)• IEEE 802.11g• IEEE 802.11b• IEEE 802.11i• IEEE 802.3 10BASE-T• IEEE 802.3u 100BASE-TX• IEEE 802.3ab 1000BASE-T• IEEE 802.3x Flow Control• Other Protocols and Standards CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTPEnvironment & Certification• Temperature Operating: 0 ~ 50 degrees C• Storage: -20 ~ 60 degrees C• Humidity Operating: 10 ~ 90% (non-condensing)• Storage: 5 ~ 90% (non-condensing)• Regulatory FCC, CE
