Ethernet over Coaxial Extender

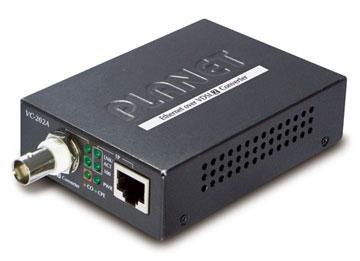

PLANET VC-202A is the high-performance Ethernet-over-Coaxial extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the VC-202A uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the VC-202A utilizes a BNC connector that supports 50ohm or 75ohm coaxial cable with the distance up to 3km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage.Hardware SpecificationPorts • 10/100Base-TX: 1 RJ-45, Auto-negotiation and Auto-MDI / MDI-X• Coaxial: 1 BNC, female connectorDIP Switch 4 position DIP switchFunctionality • CO / CPE mode select • Selectable fast and interleaved mode• Selectable target Band Plan• Selectable target SNR modeEncoding •DMT (Discrete Multi-Tone) line coding - ITU-T G.997.1 - ITU-T G.993.1 - ITU-T G.993.2 (Profile 17a Support)LED Indicators • One Power • 3 for Coaxial (BNC): - Green, LNK - Green, CO mode - Green, CPE mode• 2 for per RJ-45 10/100Base-TX port - Green, LNK / ACT - Green, SpeedCabling • Ethernet : 10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft) • Ethernet : 100Base-TX: 2-pair UTP Cat.5, 5e and 6 up to 100m (328ft) • Coaxial Cable: 50ohm, RG58A / U, RG58C / U, RG58 / U or equivalent; 75ohm, RG-6 (Distance up to 3.0km) Performance Asymmetric: 200m ->100/65Mbps 400m ->100/64Mbps 600m ->100/59Mbps 800m ->100/53Mbps 1000m -> 94/44Mbps 1200m -> 84/36Mbps 1400m -> 74/28Mbps 1600m -> 66/19Mbps 1800m -> 60/14Mbps 2000m -> 44/15Mbps 2200m -> 35/12Mbps 2400m -> 32/10Mbps 2600m -> 29/8Mbps 2800m -> 27/6Mbps 3000m -> 25/5MbpsSymmetric: 200m ->99.7/100Mbps 400m ->100/100Mbps 600m -> 86/91Mbps 800m -> 79/80Mbps 1000m -> 69/66Mbps 1200m -> 60/52Mbps 1400m -> 51/41Mbps 1600m -> 45/36Mbps 1800m -> 40/29Mbps 2000m -> 27/26Mbps 2200m -> 23/24Mbps 2400m -> 22/21Mbps 2600m -> 20/18Mbps 2800m -> 18/15Mbps 3000m -> 17/13MbpsDimension (W x D x H) 97 x 70 x 26 mmWeight 0.2 kgPower Requirement: 5V DC 2APower Consumption: 6.3Watts / 21BTU (maximum)Standard ConformanceRegulation Compliance: FCC Part 15 Class A, CEStandards Compliance: IEEE 802.3 10Base-TIEEE 802.3u 100Base-TXIEEE 802.3x Full Duplex Pause Frame Flow-ControlITU-T - G.993.1 - G.997.1 - G.993.2 (Profile 17a Support)EnvironmentOperating:Temperature: 0 ~ 50 Degree CHumidity: 5~90%, relative humidity (non-condensing)Storage Temperature: : -10~70 Degree CHumidity:: 5~90%, relative humidity (non-condensing)
