Price (inc. VAT): 1754.50 €
In stock

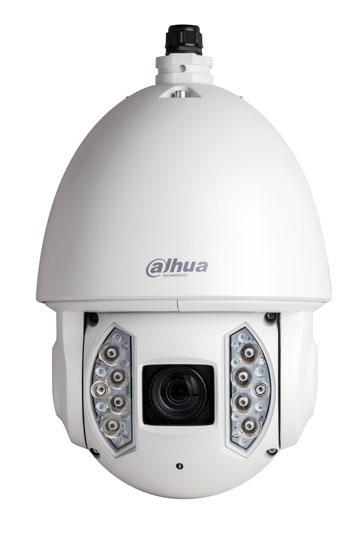

2 Megapixel Intelligent HD Network cam IR SD6AE230F-HNI
Features:Powerful 30x optical zoom• Ultra-low light star-light camera• H.264 & MJPEG Three-stream encoding• Max 60fps@720P and 30fps@1080P resolution• Defog, WDR, EIS, ROI, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC,BLC• Auto-tracking and IVS• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS• Max 240°/s pan speed, 360° endless pan rotation• Up to 255 presets, 5 auto scan, 8 tour, 5 pattern• Built-in 7/2 alarm in/out• Support intelligent 3D positioning with DH-SD protocol• Micro SD memory, IP67, IK10, Hi-POE• IR Distance up to 200mTechnical Specifications:Camera• Image Sensor 1/1.8" CMOS• Effective Pixels 1944(H) x 1092(V), 2 Megapixels• Scanning System Progressive• Electronic Shutter Speed 1/1 ~ 1/30,000s• Min. Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux (IR on)• S/N Ratio More than 56dB• Video Output BNC(1.0Vp-p/75O), PAL / NTSCCamera Features• Day/Night Auto(ICR) / Color / B/W• Backlight Compensation BLC / HLC / WDR• White Balance Auto, ATW, Indoor, Outdoor, Manual• Gain Control Auto / Manual• Noise Reduction Ultra DNR (2D/3D)• Privacy Masking Up to 24 areas• Digital Zoom 16x• EIS Support• Defog SupportLens• Focal Length 6mm~180mm(30x Optical zoom)• Max Aperture F1.6 ~ F4.8• Focus Control Auto / Manual• Angle of View H: 51.2°~ 1.8°• Close Focus Distance 100mm~ 1000mmPTZ• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°• Manual Control Speed Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s• Preset Speed Pan: 240° /s; Tilt: 200° /s• Preset 300• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan• Speed Setup Human-oriented focal length/ speed adaptation• Power up Action Auto restore to previous PTZ and lens status after power failure• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period• Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time• Protocol DH-SD, Pelco-P/D (Auto recognition)Video• Compression H.264 / MJPEGResolution 1080P(1920× 1080) / 720P(1280× 720) /D1(704× 576/704× 480)/CIF(352× 288/352× 240)• Frame Rate Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) Sub Stream 1 D1/CIF(1 ~ 25/30fps) Sub Stream 2 720P/D1/ CIF (1 ~ 25/30fps)• Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480KbpsAudio• Compression G.711a / G.711u(32kbps)/ PCM(128kbps)• Interface 1/1 channel In/OutIntelligent Function• Auto Tracking Single-scene, multiple-scene, panorama-scene• IVS Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection,• Loitering Detection, Abandoned Object Detection, Missing Object• Detection, Illegal Parking, Fast Moving and etc.• Tracking Trigger Mode Manual / Auto (alarm triggered)• Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.Network• Ethernet RJ-45 (10/100Base-T)• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x• Compatibility ONVIF PSIA CGI• Max. User Access 20 users• Smart Phone iPhone, iPad, Android, Windows PhoneAuxiliary Interface• Memory Slot Micro SD, Max 64GB• RS485 1• Alarm 7/2 channel In/OutGeneral• Power Supply AC24V/3A(±25%), Hi-POE• Power Consumption 20W, 43W (IR on, Heater on)• Working Environment -40ŗC ~ 70ŗC / Less than 90% RH• Ingress Protection IP67, IK10• Dimensions F240(mm) x 382 (mm)• Weight 6.75kg
