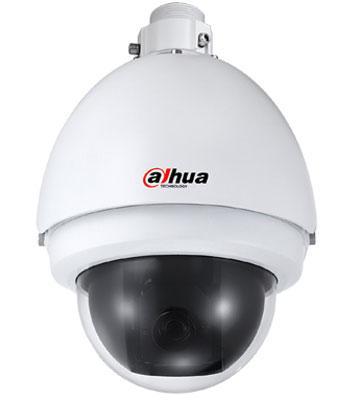

1.3Megapixel HD Network PTZ Dome Camera, 20x zoom
Features:
• 20x optical zoom
• H.264 & MJPEG dual-stream encoding
• Max. 25/30fps@ 1.3M(1280x960) & 720P resolution
• DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• Max 300°/s pan speed, 360° endless pan rotation
• Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
• Built-in 2/1 alarm in/out
• Support intelligent 3D positioning with DH-SD protocol
• Micro SD memory, IP66, IK 10 (optional)
Technical Specifications:
Camera
• Image Sensor: 1/3” Exmor CMOS
• Effective Pixels: 1280(H) x 960(V)
• Scanning System: Progressive
• Electronic Shutter Speed: 1/1 ~ 1/30,000s
• Min. Illumination: Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4
• S/N Ratio: More than 50dB
• Video Output: BNC(1.0Vp-p/75O), PAL / NTSC
Camera Features
• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / DWDR (Digital WDR)
• White Balance: Auto, ATW, Indoor, Outdoor, Manual
• Gain Control: Auto / Manual
• Noise Reduction: Ultra DNR (2D/3D)
• Privacy Masking: Up to 24 areas
• Digital Zoom: 16x
Lens
• Focal Length: 4.7mm~94mm(20x Optical zoom)
• Max Aperture: F1.4 ~ F2.6
• Focus Control: Auto / Manual
• Angle of View: H: 54.1° ~ 3.2°
• Close Focus Distance: 100mm~ 1000mm
PTZ
• Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
• Manual Control Speed: Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s
• Preset Speed: Pan: 300° /s; Tilt: 200° /s
• Preset: 80(DH-SD), 255(Pelco-P/D)
• PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup: Human-oriented focal length/ speed adaptation
• Power up Action: Auto restore to previous PTZ and lens status after power failure
• Idle Motion: Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
• Protocol: DH-SD, Pelco-P/D (Auto recognition)
Video
• Compression: H.264 / MJPEG
• Resolution: 1.3M(1280×960) / 720P(1280×720) / D1(704×576/ 704×480) /CIF(352×288/352×240)
• Frame Rate: Main Stream: 1.3M/720P/D1(1 ~ 25/30fps); Sub Stream: D1/CIF(1 ~ 25/30fps)
• Bit Rate: H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Audio
• Compression: G.711a / G.711u(32kbps)/ PCM(128kbps)
• Interface: 1/1 channel In/Out
Network
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• ONVIF: ONVIF Profile S
• Max. User Access: 20 users
• Smart Phone: iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot: Micro SD, Max 64GB
• RS485: 1
• Alarm: 2/1 channel In/Out
General
• Power Supply: AC 24V/2.2A (±10%)
• Power Consumption: 9.5W, 21W (Heater on)
• Working Environment: -40ŗC ~ 60ŗC / Less than 90% RH
• Ingress Protection: IP66, IK 10 (optional)
• Vandal Resistance: 4000V anti-lightning surge
• Dimensions: F211.9(mm) x 322.1 (mm)
• Weight: 6.8kg
