Price (inc. VAT): 369.05 €
In stock

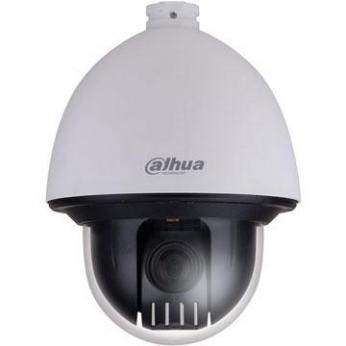

2.0Megapixel FULLHD Network PTZ Dome Camera , 20x zoom
Features:• 20x optical zoom• Support Triple-streams encoding• Max. 25/30fps@1080P, 25/30/50/60fps@720P resolution• DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS• Max 650°/s pan speed, 360° endless pan rotation• Up to 300 presets, 5 auto scan, 8 tour, 5 pattern• Built-in 7/2 alarm in/out• ±25% wide range voltage input.• Support intelligent 3D positioning with DH-SD protocol• Micro SD memory, IP67, IK10Technical Specifications:Camera• Image Sensor 1/2.8” Exmor CMOS• Effective Pixels 1920(H)×1080(V)• Scanning System Progressive• Electronic Shutter Speed 1/1 ~ 1/30,000s• B/W: 0.005Lux@F1.4 Color: 0.05Lux@F1.6 B/W: 0.005Lux@F1.6• S/N Ratio More than 50dB• Video Output BNC(1.0Vp-p/75O), PAL / NTSCCamera Features• Day/Night Auto(ICR) / Color / B/W• Backlight Compensation BLC / HLC / DWDR (Digital WDR)• White Balance Auto, ATW, Indoor, Outdoor, Manual• Gain Control Auto / Manual• Noise Reduction Ultra DNR (2D/3D)• Privacy Masking Up to 24 areas• Digital Zoom 16xLens• Focal Length 4.7mm ~ 94.0mm (20x Optical zoom)• Max Aperture F1.4 ~ F2.6• Focus Control Auto / Manual• Angle of View H:54.1° ~ 3.2°• Close Focus Distance 100mm~ 1000mmPTZ• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° • Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s• Preset Speed Pan: 650° /s; Tilt: 500° /s• Preset 300• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan• Speed Setup Human-oriented focal length/ speed adaptation• Power up Action Auto restore to previous PTZ and lens status after power failure • Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period• Protocol DH-SD, Pelco-P/D (Auto recognition)Video• Compression H.264 / MJPEG• Resolution 1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF(352×288/352×240)• Frame Rate Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)• Sub Stream 1 D1/CIF(1 ~ 25/30fps)• Sub Stream 2 720P/D1/ CIF (1 ~ 25/30fps)• Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480KbpsAudio• Compression G.711a / G.711u(32kbps)/ PCM(128kbps)• Interface 1/1 channel In/Out• Intelligent Function• IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, • Face Detection SupportNetwork• Ethernet RJ-45 (10/100Base-T)• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x• Compatibility ONVIF PSIA CGI• Max. User Access 20 users• Smart Phone iPhone, iPad, Android, Windows PhoneAuxiliary Interface• Memory Slot Micro SD, Max 64GB• RS485 1• Alarm 7/2 channel In/OutGeneral• Power Supply AC 24V/3A (±25%) POE plus(802.3at)• Power Consumption 13W,20W (Heater on)• Working Environment -40ŗC ~ 70ŗC / Less than 90% RH• Ingress Protection IP67, IK10• Dimensions F222(mm) x 297(mm)• Weight 6.2kg
