Price (inc. VAT): 464.64 €
In stock

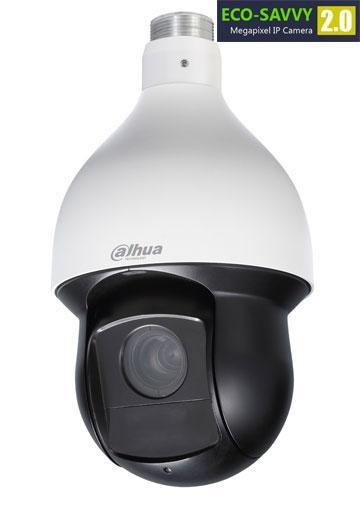

2.0Megapixel FULLHD Network PTZ Dome Camera , 20x zoom
Features:
• 20x optical zoom
• Support Triple-streams encoding
• Max. 25/30fps@1080P(1920?1080) & 50/60fps@720P resolution
• DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• Max 400°/s pan speed, 360° endless pan rotation
• Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
• Built-in 2/1 alarm in/out
• Support intelligent 3D positioning with DH-SD protocol
• Micro SD memory, IP66, POE+
• IR Distance up to 100m(AC24V)/ 80m(DC12V)
Technical Specifications:
Camera
• Image Sensor 1/2.8” CMOS
• Effective Pixels 1944(H) x 1092(V), 2Megapixels
• Scanning System Progressive
• Electronic Shutter Speed 1/3 ~ 1/30,000s
• Min. Illumination Color: 0.05Lux@F1.4;
• B/W: 0.005Lux@F1.4 Color: 0.05Lux@F1.6;
Camera Features
• Day/Night Auto(ICR) / Color / B/W
• Backlight Compensation BLC / HLC / DWDR (Digital WDR)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction Ultra DNR (2D/3D)
• Privacy Masking Up to 24 areas
• Digital Zoom 16x
Lens
• Focal Length 4.7mm ~ 94.0mm (20x Optical zoom)
• Max Aperture F1.4 ~ F2.6
• Focus Control Auto / Manual
• Angle of View H: 54.1°~
• Close Focus Distance 100mm~ 1000mm
PTZ
• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
• Preset Speed Pan: 400° /s; Tilt: 300° /s
• Preset 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
• IR Distance 80m (DC12V) 100m (AC24V)
Video
• Compression H.264 / MJPEG
• Resolution 1080P(1920× 1080)/ 720P(1280× 720) / D1(704× 576/ 704× 480) /CIF(352× 288/352× 240)
• Frame Rate Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) Sub Stream 1 D1/CIF(1 ~ 25/30fps) Stream 2 720P/ D1/ CIF (1 ~ 25/30fps)
• Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Audio
• Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)
• Interface 1/1 channel In/Out
Intelligent Function
• IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object
Detection
• Face Detection Support
Network
• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Compatibility ONVIF PSIA CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot Micro SD, Max 128GB
• Alarm 2/1 channel In/Out
General
• Power Supply AC24V/ DC12V, POE plus(802.3at)
• Power Consumption AC24V: 13W, 23W (IR on)
• Working Environment AC24V: -40ŗC ~ 70ŗC / Less than 90% RH
• Ingress Protection IP66
• Dimensions F186.0(mm) x 309(mm)
• Weight 3.5kg
