Price (inc. VAT): 618.31 €
In stock

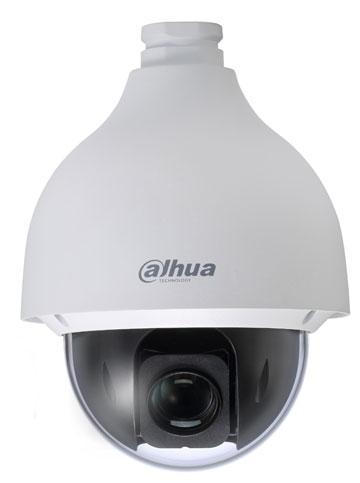

4 Megapixel Intelligent HD Network cam
Features:• 30x optical zoom• Support Triple-streams encoding• Max. 25/30fps@4M(2592× 1520),50/60fps@3M/1080P resolution• WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS• Max 500°/s pan speed, 360° endless pan rotation• Up to 300 presets, 5 auto scan, 8 tour, 5 pattern• Built-in 2/1 alarm in/out• Support intelligent 3D positioning with DH-SD protocol• Micro SD memory, IP67, IK10Technical Specifications:Camera• Image Sensor 1/3” Color CMOS• Effective Pixels 2688(H) x 1520(V)• Scanning System Progressive• Electronic Shutter Speed 1/1 ~ 1/30,000s• Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6• S/N Ratio More than 50dB• Video Output BNC(1.0Vp-p/75O), PAL / NTSCCamera Features• Day/Night Auto(ICR) / Color / B/W• Backlight Compensation BLC / HLC / WDR (120dB)• White Balance Auto, ATW, Indoor, Outdoor, Manual• Gain Control Auto / Manual• Noise Reduction Ultra DNR (2D/3D)• Privacy Masking Up to 24 areas• Digital Zoom 16xLens• Focal Length 4.5mm ~ 135.0mm (30x Optical zoom)• Max Aperture F1.6 ~ F4.4• Focus Control Auto / Manual• Angle of View H: 60°~ 2.40°• Close Focus Distance 10mm~ 1500mmPTZ• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°• Manual Control Speed Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s• Preset Speed Pan: 500° /s; Tilt: 500° /s• Preset 300(DH-SD)• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan• Speed Setup Human-oriented focal length/ speed adaptation• Power up Action Auto restore to previous PTZ and lens status after power failure• Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period• Protocol DH-SD(Auto recognition)Video• Compression H.265 /H.264 / MJPEG• Resolution 4M(2592× 1520)/3M(2304× 1296)/1080P(1920× 1080) / 720P(1280× 720) / D1(704× 576/ 704× 480) /CIF(352× 288/352× 240)• Frame Rate Main Stream 4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps)DH-SD50430U-HN• Sub Stream 1 D1/CIF(1 ~ 25/30fps)• Sub Stream 2 1080P /960P/720P(1 ~ 25/30fps)• Bit Rate H.265/H.264: 192K ~ 8192Kbps, MJPEG: 192K ~ 2048KbpsAudio• Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)• Interface 1/1 channel In/Out• Intelligent Function• IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection• Face Detection SupportNetwork• Ethernet RJ-45 (10/100Base-T)• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,• Compatibility ONVIF PSIA CGI• Max. User Access 20 users• Smart Phone iPhone, iPad, Android, Windows PhoneAuxiliary Interface• Memory Slot Micro SD, Max 64GB• Alarm 2/1 channel In/OutGeneral• Power Supply AC24V/1.5A (±10%), POE plus (802.3at)• Power Consumption Outdoor: 13W, 23W (Heater on)• Working Environment Outdoor: -40ŗC ~ 60ŗC / Less than 90% RH• Ingress Protection IP67, IK10• Dimensions F186.0(mm) x 253(mm)• Weight 2.5kg
