Price (inc. VAT): 390.83 €
In stock

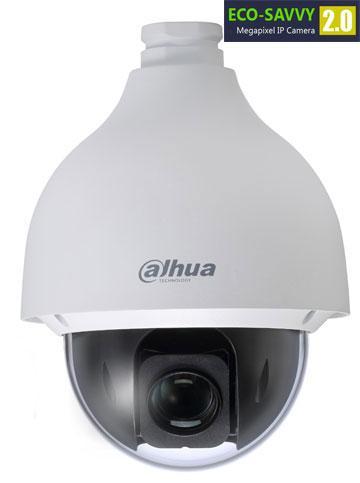

2.0Megapixel FULLHD Network PTZ Dome Camera , 20x zoom
Features:• 20x optical zoom• Support Triple-streams encoding• Max. 25/30fps@1080P(1920?1080) & 50/60fps@720P resolution• DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS• Max 500°/s pan speed, 360° endless pan rotation• Up to 300 presets, 5 auto scan, 8 tour, 5 pattern• Built-in 2/1 alarm in/out• Support intelligent 3D positioning with DH-SD protocol• Micro SD memory, IP67(outdoor), IK10Technical Specifications:Camera• Image Sensor 1/2.8” Exmor CMOS• Effective Pixels 1920(H) x 1080(V), 2Megapixels• Scanning System Progressive• Electronic Shutter Speed 1/3 ~ 1/30,000s• Min. Illumination Color: 0.05Lux@F1.4 B/W: 0.005Lux@F1.4• S/N Ratio More than 55dBCamera Features• Day/Night Auto(ICR) / Color / B/W• Backlight Compensation BLC / HLC / DWDR (Digital WDR)• White Balance Auto, ATW, Indoor, Outdoor, Manual• Gain Control Auto / Manual• Noise Reduction Ultra DNR (2D/3D)• Privacy Masking Up to 24 areas• Digital Zoom 16xLens• Focal Length 4.7mm ~ 94.0mm (20x Optical zoom)• Max Aperture F1.4 ~ F2.6 • Focus Control Auto / Manual• Angle of View H: 54.1°~ 3.2° H: 67.8°~ 2.77°• Close Focus Distance 100mm~1000mmPTZ• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°• Manual Control Speed Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s• Preset Speed Pan: 500° /s; Tilt: 500° /s• Preset 300• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan• Speed Setup Human-oriented focal length/ speed adaptation• Power up Action Auto restore to previous PTZ and lens status after power failure• Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period• Protocol DH-SD(Auto recognition)Video• Compression H.264 / MJPEG• Resolution 1080P(1920× 1080)/ 720P(1280× 720) / D1(704× 576/ 704× 480) /CIF(352× 288/352× 240)DH-SD50(52C)220T/230T-HN• Frame Rate Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) Sub Stream 1 D1/CIF(1 ~ 25/30fps) Sub Stream 2 720P/ D1/ CIF (1 ~ 25/30fps)• Bit Rate H.264: 448K ~ 8192KbpsAudio• Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)• Interface 1/1 channel In/Out• Intelligent Function• IVS Tripwire, Intrusion, Abandoned Object Detection, Missing ObjectDetection• Face Detection SupportNetwork• Ethernet RJ-45 (10/100Base-T)• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Compatibility ONVIF PSIA CGI• Max. User Access 20 users• Smart Phone iPhone, iPad, Android, Windows PhoneAuxiliary Interface• Memory Slot Micro SD, Max 128GB• Alarm 2/1 channel In/OutGeneral• Power Supply AC24V/1.5A (±10%), POE plus (802.3at)• Power Consumption Outdoor: 13W,23W (Heater on) In-ceiling: 13W• Working Environment Outdoor: -40ŗC ~ 60ŗC / Less than 90% RH• Ingress Protection IP67(Outdoor), IK10• Dimensions Outdoor: F186.0(mm) x 253(mm)• Weight Outdoor: 2.5kg• In-ceiling: 2.2Kg
