Price (inc. VAT): 488.84 €
Ask for the balance

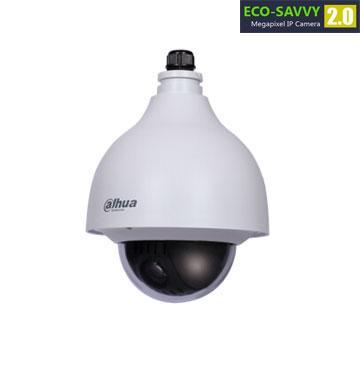

2.0Megapixel FULLHD Network PTZ Dome Camera , 12x zoom
Features:
• 1/2.8” 2Megapixel STARVIS™ CMOS
• Powerful 12x optical zoom
• Support Triple-streams encoding
• Max. 25/30fps@1080P
• IVS
• Support PoE+
• IP66, IK10
Technical Specifications:
Camera
• Image Sensor 1/2.8” STARVIS™ CMOS
• Effective Pixels 1920(H) x 1080(V), 2 Megapixels
• RAM/ROM 1024M/128M
• Scanning System Progressive
• Electronic Shutter Speed 1/1s~1/30,000s
• Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6
• S/N Ratio More than 55dB
• IR Distance N/A
• IR On/Off Control N/A
• IR LEDs N/A
Lens
• Focal Length 5.3mm~64mm
• Max. Aperture F1.6 ~ F4.4
• Angle of View H: 58.2° ~ 4.8°
• Optical Zoom 12x
• Focus Control Auto/Manual
• Close Focus Distance 100mm~ 1000mm
PTZ
• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°
• Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s
• Preset Speed Pan: 300° /s; Tilt: 200° /s
• Presets 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
• Speed Setup Human-oriented focal Length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Protocol DH-SD
Intelligence
• Auto Tracking N/A
• IVS Tripwire, Intrusion,Abandoned/Missing, Face Detection
Video
• Compression H.265+/H.265/H.264+/H.264
• Streaming Capability 3 Streams
• Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
• Main stream: 1080P/720P(1 ~ 25/30fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)
• Bit Rate Control CBR/VBR
• Bit Rate H.265/H.264: 448K ~ 8192Kbps
• Day/Night Auto(ICR) / Color / B/W
• Backlight Compensation BLC / HLC / WDR(120dB)
• White Balance Auto, ATW,Indoor,Outdoor,Manual
• Gain Control Auto / Manual
• Noise Reduction Ultra DNR (2D/3D)
• Motion Detetion Support
• Region of Interest Support
• Electronic Image
• Stabilization (EIS) N/A
• Defog Support
• Digital Zoom 16x
• Flip 180°
• Privacy Masking Up to 24 areas
Audio
• Compression G.711a/G.711Mu/G.726/AAC
Network
• Ethernet RJ-45 (10Base-T/100Base-TX)
• Protocol IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20 users
• Edge Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software Smart PSS, DSS
• Smart Phone IOS, Android
Certifications
• CE: EN55032/EN55024/EN50130-4
• FCC: Part15 subpartB,ANSI C63.4- 2014
• UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
• Video Interface N/A
• RS485 N/A
• Audio I/O 1/1
• Alarm I/O 2/1
Electrical
• Power Supply AC 24V/1.5A(±10%), PoE+(802.3at)
• Power Consumption 12W,22W (Heater on)
Environmental
• Operating Conditions -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
• Ingress Protection IP66
• Vandal Resistance IK10
Construction
• Casing Metal
• Dimensions ?186(mm)×234(mm)
• Net Weight 2.3kg(5.07lb)
• Gross Weight 4.3kg(9.48lb)
