Price (inc. VAT): 306.13 €
In stock

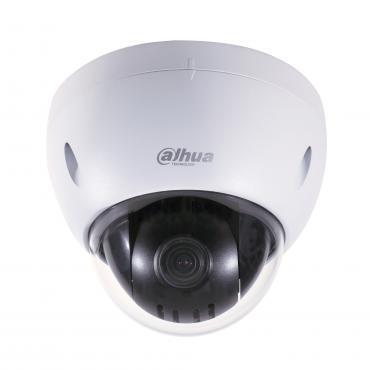

Mini 2 Megapixel HD Network PTZ Dome Camera, x3 zoom
Features:
• 3.0mm ~ 9.0mm(3x)optical zoom
• H.264 & MJPEG dual-stream encoding
• Max 25/30fps@1080p resolution
• DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• Max 240 °/s pan speed, 0° ~360° endless pan rotation
• Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
• Built-in 2/1 alarm in/out
• Support intelligent 3D positioning with DH-SD protocol
• Micro SD memory, IP66, IK10, PoE
Technical Specifications:
Camera
• Image Sensor: 1/2.8” Exmor CMOS
• Effective Pixels: 1944(H) x 1092(V), 2 Megapixels
• Scanning System: Progressive
• Electronic Shutter Speed: 1/1 - 1/30,000s
• Min. Illumination: Color: 0.05 lux@F1.6, B/W: 0.005 lux@F1.6
• S/N Ratio: More than 50dB
Camera Features
• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / DWDR /
• White Balance: Auto, ATW, Indoor, Outdoor, Manual
• Gain Control: Auto / Manual
• Noise Reduction: 2D / 3D
• Privacy Masking: Up to 24 areas
• Digital Zoom 16x
Lens
• Focal Length: 3.0mm ~ 9.0mm(3x Optical zoom)
• Max Aperture: F1.6 ~ F2.7
• Focus Control Auto / Manual
• Angle of View H: 116.5° ~ 34.5°
• Close Focus Distance 1000mm~1500mm
PTZ
• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~ 240°/s; Tilt: 0.1° ~160°/s
• Preset Speed Pan: 240°/s; Tilt: 160°/s
• Preset: 80(DH-SD), 255(Pelco-P/D)
• PTZ Mode: 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
• Speed Setup: Human-oriented focal length/ speed adaptation
• Power up Action: Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Video
• Compression: H.264 / MJPEG
• Resolution: 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
• Frame Rate: Main Stream 1080P/D1(1 ~ 25/30fps), 720P(1~50/60fps)
• Sub Stream: D1/CIF(1 ~ 25/30fps)
• Bit Rate: H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
• Compression: G.711a / G.711u (32kbps) / PCM (128kbps)
• Interface: 1/1 channel In/Out
Network
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• ONVIF: ONVIF Profile S
• Max. User Access: 20 users
• Smart Phone: iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot: Micro SD, Max 64GB
General
• Power Supply: DC12V, PoE(802.3af)
• Power Consumption: 10W
• Working Environment: -20ŗC ~ 60ŗC / Less than 90% RH
• Ingress Protection: IP66
• Vandal Resistance: IK10
• Dimensions: F160(mm) x 132(mm)
• Weight: 1.33kg
