Price (inc. VAT): 62.92 €
In stock

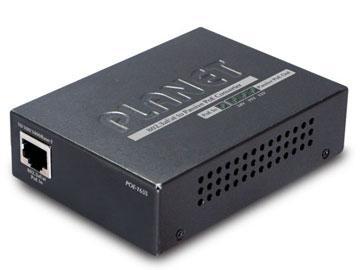

PoE injector 1ch 12V/19V/24V
Features: • 2-Port 10/100/1000Mbps RJ-45 interfaces- 1-Port Data + Power output- 1-Port Data + 802.3af/at Power input• Complies with IEEE 802.3af/at Power over Ethernet PD• Non-IEEE 802.3af/at injector port• 1 DC 12V/19V/24V DIP switch• Power Output Pin: 4/5(+), 7/8(-)• Metal case• LED indicators for PoE-In LED and 12V/19V/24V Output Voltage LED• IEEE 802.3 10Base-T• IEEE 802.3u 100Base-TX• IEEE 802.3ab 1000Base-T• IEEE 802.3at High Power over Ethernet• IEEE 802.3af Power over Ethernet• FCC Part 15 Class A, CETechnical Specifications: • Interface: PoE In Port: 1 x IEEE 802.3af/at RJ-45 STP / PD, Passive PoE Out Port: 1 x non-802.3af/at RJ-45 STP / PSE• LED Indicator: System, PoE In (Green), Passive PoE Out ,12V (Green),19V (Green), 24V (Green)• Network Cable: 10Base-T: 2-Pair UTP Cat. 3, 4, 5, 100Base-TX: 2-Pair UTP Cat. 3, 4, 5, 1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 , EIA/TIA-568 100-ohm STP• DIP Switch: 12V/19V/24V DC Output Voltage• Power Input: IEEE 802.3af/at Power over Ethernet End-Span / Mid-Span Class 4 PD• Power Output: Maximum Passive PoE , 12V DC, 0.7A, 19V DC, 0.7A, 24V DC, 0.7A• Power Output Pin Assignment: 4/5(+), 7/8(-)• Data Rate: 10/100/1000Mbps• Maximum Distance: Up to 100meters (Including POE-165S)• Dimensions (W x D x H) 94 x 70.3 x 26.2 mm• Weight: 182g• Number of devices that can be powered: 1• Operating Temperature -40 ~ 75 degrees C• Storage Temperature: -40 ~ 85 degrees C• Operating Humidity 5 ~ 90%, Relative Humidity, non-condensing• Storage Humidity: 5 ~ 90%, Relative Humidity, non-condensing• Compliant PLANET Outdoor Wireless Devices: 2.4GHz WNAP-6306 (v2) @ 12V, 5GHz WNAP-7206 @ 12V, WNAP-7300 @ 19V/24V, WNAP-7320 @ 12V/19V/24V• Standards Compliance: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet , IEEE 802.3at High Power over Ethernet , IEEE 802.3af Power over Ethernet• Regulation Compliance: FCC Part 15 Class A, CE
