Price (inc. VAT): 47.19 €
Ask for the balance

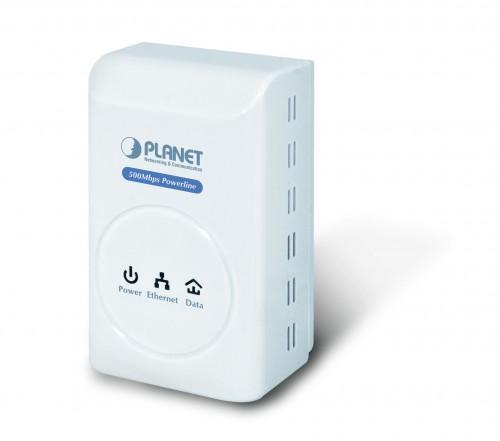

500Mbps Powerline Ethernet Bridge
Key Features• Designed for high-definition multimedia streaming• Data rate up to 500Mbps and distance up to 300 Meters over existing electrical wiring• IEEE 802.3, IEEE 802.3u, IEEE 1901 and HomePlug AV standard compliant• Backwards compatible with HomePlug AV (200Mbps) including PLANET Powerline products• Equipped with 10/100Mbps RJ-45 Ports for LAN/ WAN, Auto MDI/ MDI-X supportedSpecification:• Network Interface: One RJ-45 port (10/100Base-TX Ethernet) One 500Mbps power line port supporting co-existence with HomePlug 1.0 (14/85Mbps)• Cabling: Cat. 5 UTP cable• LED: Power: On / Off, Ethernet: Red / Orange / Green / Off, Data:Solid / Blinking / Off• Button One Security / Reset buttonStandards Conformance• Computer Interface: IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX• Standards: IEEE 1901 / HomePlug AV• Security: 128-bit AES link encryption with key management• Data PHY Rate: 500Mbps over Powerline and 10/100Mbps over Ethernet• Modulation Schemes: OFDM symbol modulation on line synchronization 1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier modulation• Frequency Band: 2 ~ 50 MHz• Additional Protocols: Mix of TDMA and CSMA/CA channel access scheme; CO device generates a periodic beacon carrier for channel access scheme• Operation Range: Estimated range of 300 meters in wall powerlines• Software Utility: Device detect / diagnostic, Windows 98 SE, ME, 2000, NT, XP, Vista, and Window 7Environment Specifications• Operating: Temperature: 0~40 Degree C Relative Humidity:10~90% (non-condensing)• Storage: Temperature: -20~70 Degree C Relative Humidity: 5~95% (non-condensing)• Power Supply: 100~240V AC, 50~60Hz internal• Housing Dimension (W x D x H) Plastic (65.3 x 47.3 x 24.5 mm)• Weight: 57 g• Emission: FCC, CE
