Price (inc. VAT): 48.40 €
In stock

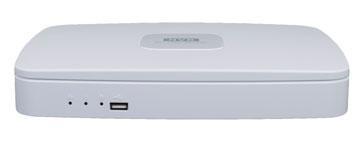

IP Network recorder 8 ch NVR3108ECO
Features:
• 64Mbps 8 IP cameras input, ONVIF 2.4
• Plug and Play(UPNP), P2P, Cloud storage(Dropbox & Google drive), 3G, WIFI
• 1 SATA up to 6T
Technical Specifications:
• Special Function P2P Function Using Device ID and password to login www.vssweb.net, realize remote monitoring, playback and control like IE Web login. No need any network, IP setting, easy for end user to use network function.
• Face Detection N/A
• Cloud Storage Support Dropbox and Google Drive.
• SystemOperation Embedded LINUX
• Pentaplex function Live monitoring, recording, playback, backup & remote access
• Control Mode USB mouse, Network
• Video IP Camera Input 8ch.(32Mbps)
• Decoding Capability 8ch.D1@30fps 7ch.720P@30fps 4ch.1080P@30fps
• Support Protocol ONVIF
• Standard PAL (625line, 50f/s) NTSC (525line, 60f/s)
• Output 1 CVBS, BNC (1.0Vp-p,75 ohms)
• 1 HDMI, 1.3a,support 1920×1080 Resolution
• 1 VGA,1920×1080,1440×900,1280×1024,1024×768,800×600 Resolution
• Audio Output
• 1 RCA(2.0Vp-p,300 ohms)
• Two-way Talk 1st channel reuse
• Display IP Resolution "Main stream:up to 1920x2048
• Auxiliary stream:4CIF"
• Resolution 1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Up to 5MP
• Frame 1~30fps
• Tour Display Support
• Privacy Masking Four zones for privacy masking for each channel
• Recording Video Compression MPEG-4/H.264(High Profile@Level4.2)
• Audio Compression G.711A
• Image Encoding Adjustable encoding quality, variable code stream/fixed code stream
• Dual Stream Support
• Recording Mode Manual, auto, motion detection, stop
• Time Bar Support
• Video Detection & Alarm Trigger Events Recording, Tour, Email
• Recording, PTZ, Tour,Email
• Motion Detection 396 (22×18) detection zone, variable sensitivity levels
• Capture JPEG capture
• Playback & Backup Max Playback 1/2/4/8 ch.
• Backup Mode USB,HDD,Network Backup
• Network Ethernet 1 RJ-45 port (10M/100M)
• Network Protocol TCP/IP, UDP, HTTP, RTP/RTSP
• Network Functions DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP,P2P,3G
• Remote Operation Monitoring,playback,system setting,file download,log information
• Smart Phone iPhone,iPad,Android,Blackberry,Windows Mobile
• Hard Disk 1 SATA port,each SATA supports 6TB
• HDD Management Hard disk hibernation technology, HDD faulty alarm
• Auxiliary Interface USB Interface 2 USB 2.0 ports
• Environment Power Supply DC12V/2A
• Power Consumption 5W (without HDD)
• Working Environment 0?~+45? / 10%-90%RH
• -10?~+55? / 10%-90%RH
• Dimension(W *D * H) 215x215x50mm(W×D×H)
• Weight 0.8Kg (without HDD)
• Installation Desk type
