Price (inc. VAT): 102.85 €
In stock

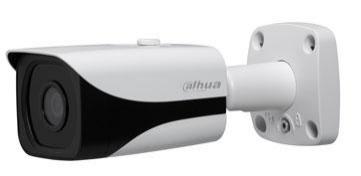

IP network camera 1.3MP HD IPC-HFW4120EP
Features:
• 1/3” 1.3Megapixel progressive scan CMOS
• Support H.264&MJPEG dual codec
• 25/30fps@1.3Mp(1280× 960)
• Smart Detection supported
• DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.6mm fixed lens (6mm optional)
• Max. IR LEDs Length 40m
• IP67, PoE
Technical Specifications:
Camera
• Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
• Effective Pixels 1280(H)x960(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
• Min. Illumination 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)
• S/N Ratio More than 50dB
• Video Output N/A
Camera Features
• Max. IR LEDs Length 40m
• Day/Night Auto(ICR)/Color/B/W
• Backlight Compensation BLC / HLC / DWDR
• White Balance Auto/Sunny/Night/Outdoor/Customized
• Gain Control Auto/Manual
• Noise Reduction 3D
• Privacy Masking Up to 4 areas
Lens
• Focal Length 3.6mm (6mm optional)
• Max Aperture F2.2(F2.0)
• Focus Control Manual
• Angle of View H:74°(47°)
• Lens Type Fixed lens
• Mount Type Board-in Type
Video
• Compression H.264/H.264H/H.264B/MJPEG
• Resolution 1.3M(1280× 960) / 720P(1280× 720) / D1(704× 576/704× 480) / CIF(352× 288/352× 240)
• Frame Rate Main Stream 1.3M/720P(1~25/30fps)
• Sub Stream D1/CIF(1~25/30fps)
• Third Stream 720P(1~14/7fps)
• Bit Rate H.264: 32Kbps~10Mbps
• Corridor Mode Support
Audio
• Compression N/A
• Interface N/A
Smart Function
• Smart detection
• Tripwire
• Intrusion
• Abandoned/Missing
• Scene Change
• Audio detect
• Face detect
Network
• Ethernet RJ-45 (10/100Base-T)
• Wi-Fi N/A
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Compatibility ONVIF, PSIA, CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot N/A
• RS485 N/A
• Alarm N/A
• PIR Sensor Range N/A
General
• Power Supply DC12V, PoE (802.3af)
• Power Consumption < 5.5W
• Working Environment -30°C~+60°C, Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance N/A
• Dimensions 70mm× 70mm× 180mm
• Weight 0.4kg(0.528kg with packaging)
