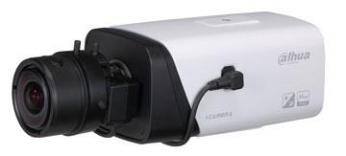

4K IP network camera 12M HF81200EP
Features:
• 1/2.3" 12 Megapixel progressive scan CMOS
• Support H.264/MJPEG dual codec
• Smart triple streams supported
• Max 15fps@12MP(4000x3000)
• Ultra Defog, ROI, EIS
• Auto back focus
• Bulit-in Mic
• 100/1000M Base-T Ethernet
Technical Specifications:
Camera
• Image Sensor: 1/2.3” 12Megapixel CMOS
• Effective Pixels: 4000(H)x3000(V)
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual, 1/3~1/10000s
• Min. Illumination: Color: 0.01Lux/F1.2, B/W: 0.001Lux/F1.2
• S/N Ratio: More than 50dB
• Video Output: 1 channel BNC(1.0Vp-p,75O)
Camera Features
• Max. IR LEDs Length: N/A
• Day/Night: Auto(ICR)/Color/B/W
• Backlight Compensation: BLC / HLC / DWDR
• White Balance Auto/Manual
• Gain Control Auto/Manual
• Noise Reduction: 3D
• Privacy Masking: Up to 4 areas
• EIS: Support
• Ultra Defog: Support
• Smart focus: ABF
Lens
• Mount Type: C/CS
Video
• Compression: H.264/MJPEG
• Resolution: 12M(4000×3000)/8M(3840×2160)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288)
• Frame Rate: Main Stream 12M(1~15fps)/8M/1080P (1~25/30fps)
• Sub Stream: D1/CIF(1 ~ 50/60fps)
• Third Stream: 1080P/720P/D1(1 ~ 50/60fps)
• Bit Rate: H.264: 32K ~ 96Mbps
• ROI: Up to 4 areas
Audio
• Compression: G.711a / G.711u
• Interface: 1/1 channel In/Out(Built in Mic)
Network
• Ethernet: RJ-45 (10/100/1000Base-T)
• Wi-Fi: N/A
• Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• Compatibility: ONVIF, PSIA, CGI
• Max. User Access: 20 users
• Smart Phone: iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot: Micro SD, Max 128GB
• RS485: 1 port
• Alarm: 2/1 channel In/Out
General
• Power Supply: DC12V/AC24V, PoE (802.3af)
• Power Consumption: Max12W (ABF&ICR on)
• Working Environment: -30°C~+60°C, Less than 95% RH
• Ingress Protection: N/A
• Dimensions: 74.1mm×65.5mm×135.4mm
• Weight: 0.3Kg
