Price (inc. VAT): 369.05 €
In stock

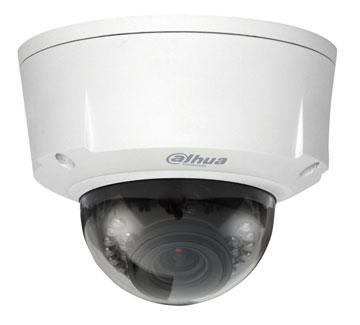

IP network camera 5M Full HD IR HDBW5502
Features:
• 1/2.5” 5Megapixel progressive scan CMOS
• H.264 & MJPEG dual-stream encoding
• Max 12fps@5M(2560×1920)&25/30fps@1080P(1920×1080)
• DWDR, Day/Night(ICR), 3DNR, Auto Iris, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 4~9mm varifocal motorized lens
• Built-in 1/1 alarm in/out
• Max. IR LEDs length 20m
• Micro SD memory, IP66, IK10, PoE
Technical Specifications:
Camera
• Image Sensor: 1/2.5” 5Megapixel CMOS
• Effective Pixels: 2560(H)x1920(V)
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual, 1/3~1/10000
• Min. Illumination: Color: 0. 01Lux/F1.6
• S/N Ratio: More than 50dB
• Video Output: 1 channel, BNC(1.0Vp-p/75?)
Camera Features
• Max. IR LEDs Length: N/A 20m
• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / DWDR
• White Balance Auto
• Gain Control Auto/Manual
• Noise Reduction: 3D
• Privacy Masking: Up to 4 areas
Lens
• Focal Length: 4~9mm motorized
• Max Aperture: F1.6
• Focus Control: Auto
• Angle of View H: 86.5°(Wide)~28.6°(Tele)
• Lens Type: Motorized /Auto Iris(DC)
• Mount Type: Board-in Type
Video
• Compression: H.264H/H.264B/H.264/MJPEG
• Resolution: 5M(2536×1920)/3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /
D1(704×576) / CIF(352×288)
• Frame Rate: Main Stream 5M(1~12fps)/1080P/720P(1~25/30fps)
• Sub Stream: D1/CIF(1 ~ 25/30fps)
• Bit Rate: H.264H: 32K ~ 8192Kbps
Audio
• Compression: G.711a / G.711u/ PCM
• Interface: 1/1 channel In/Out
Network
• Ethernet: RJ-45 (10/100Base-T)
• Wi-Fi N/A
• Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• Compatibility ONVIF PSIA CGI
• Max. User Access: 20 users
• Smart Phone: iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot: Micro SD, Max 64GB
• RS485 N/A
• Alarm 1/1 channel In/Out
• PIR Sensor Range: N/A
General
• Power Supply DC12V/AC24V, PoE(802.3af)
Power Consumption: <8.5W(AC24V: +2W)
• Working Environment: -30°C~+60°C , Less than 90%RH
• Ingress Protection: IP66
• Vandal Resistance: IK10
• Dimensions: F151mm×119mm
• Weight: 1.25kg
