Price (inc. VAT): 131.89 €
In stock

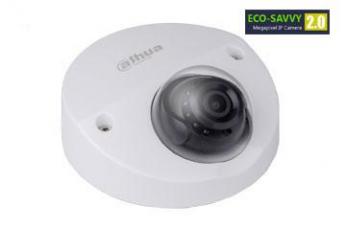

IP network camera 2MP FULL HD IPC-HDBW4220FP-AS
Features:
• 1/2.8” 2Megapixel progressive scan CMOS
• H.264&MJPEG triple-stream encoding
• 25/30fps@1080P(1920× 1080)
• Smart Detection supported
• DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC,
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.6mm fixed lens (2.8mm, 6mm optional)
• Max. IR LEDs Length 20m
• IP67,IK10, PoE
• Micro SD card memory
• 1/1 audio in/out
Technical Specifications:
Camera
• Image Sensor 1/2.8” 2Megapixel progressive scan CMOS
• Effective Pixels 1920(H) x 1080(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
• Min. Illumination 0.01lux/F2.0(color),0lux/F2.0 (IR on)
• S/N Ratio More than 50dB
• Video Output N/A
Camera Features
• Max. IR LEDs Length 20m
• Day/Night Auto(ICR)/Color/B/W
• Backlight Compensation BLC / HLC / DWDR
• White Balance Auto/Manual
• Gain Control Auto/Manual
• Noise Reduction 3D
• Privacy Masking Up to 4 areas
Lens
• Focal Length 3.6mm (2.8mm,6mm optional)
• Max Aperture F2.0(F2.0,F2.0)
• Focus Control Manual
• Angle of View H:93°(120°/63°)
• Lens Type Fixed lens
• Mount Type Board-in Type
Video
• Compression H.264/H.264H/H.264B/MJPEG
• Resolution 1080P(1920x1080)/1.3M(1280x960)/720P(1280× 720)/D1(704× 576/704× 480) /CIF(352× 288/352× 240)
• Frame Rate: Main Stream 1080P/720P(1 ~ 25/30fps): Sub Stream D1/CIF(1 ~ 25/30fps): Third Stream 720P(1-13/4fps)
• Bit Rate H.264: 32K ~ 10Mbps
• Corridor Mode Support
Audio
• Compression: G.711a/G.711u/PCM AAC
• Interface: Interface:1/1 audio In/Out
Smart Function
• Smart detection: Tripwire, Intrusion, Scene change, Face detect
Network
• Ethernet RJ-45 (10/100Base-T)
• Wi-Fi N/A
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• Compatibility ONVIF,PSIA,CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot Micro SD, Max 128GB
• RS485 N/A
• Alarm N/A
• PIR Sensor Range N/A
General
• Power Supply DC12V, PoE (802.3af)
• Power Consumption Max 5W
• Working Environment -40°C~+60°C, Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance IK10
• Dimensions F106mm× 50.3mm
• Weight 0.35kg
