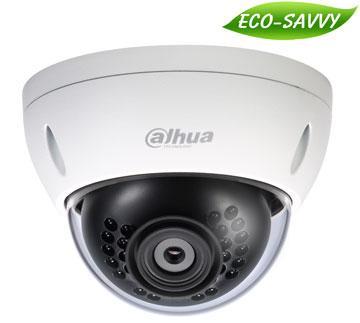

IP network cameraHD HDBW4100EP
Features:
• 1/3” 1.3Megapixel progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• 25/30fps@1.3M(1280× 960)&720(1280× 720)
• DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.6mm fixed lens (2.8mm, 6mm optional)
• Max. IR LEDs length 30m
• IK10, IP66, PoE
Technical Specifications:
Camera
• Image Sensor 1/3” 1.3Megapixel Aptina CMOS
• Effective Pixels 1280(H)x960(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual, 1/3(4)~1/10000s
• Min. Illumination Color: 0.01Lux/F1.2, 0Lux/F1.2(IR on)
• S/N Ratio More than 50dB
• Video Output N/A
Camera Features
• Max. IR LEDs Length 30m
• Day/Night Auto(ICR)/Color/B/W
• Backlight Compensation BLC / HLC / DWDR
• White Balance Auto/Manual
• Gain Control Auto/Manual
• Noise Reduction 3D
• Privacy Masking Up to 4 areas
Lens
• Focal Length 3.6mm (2.8mm, 6mm optional)
• Max Aperture F1.8(F2.0/F1.6)
• Angle of View H: 72.5°/90°/44°
• Lens Type Fixed lens
• Mount Type Board-in Type
Video
• Compression H.264 / MJPEG
• Resolution 1.3M(1280× 960) / 720P(1280× 720) / D1(704× 576/704× 480) / CIF(352× 288/352× 240)
• Frame Rate Main Stream 1.3M/720P(1 ~ 25/30fps)
• Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate H.264: 32K ~ 8192Kbps
Audio
• Compression N/A
• Interface N/A
Network
• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• ONVIF ONVIF Profile S
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows PhoneDH-IPC-HDBW4100E
Auxiliary Interface
• Memory Slot Micro SD Max 64GB(-AS/-S)
• RS485 N/A
• PIR Sensor Range N/A
General
• Power Supply DC12V, PoE(802.3af)
• Power Consumption Max W
• Working Environment -20°C~+60°C, Less than 95% RH
• Ingress Protection IP66
• Vandal proof IK10
• Dimensions F110mm x 81mm
• Weight 0.29Kg
