Price (inc. VAT): 124.63 €
In stock

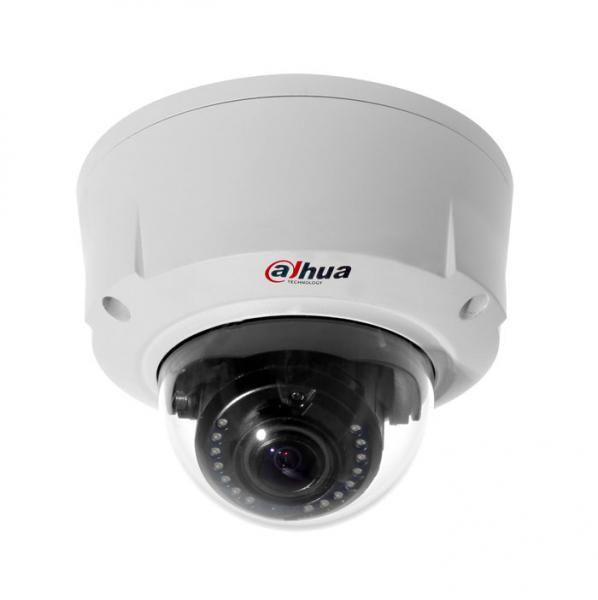

IP network camera Full HD DOMEIR 3200P
Features:
• 1/3” 2Megapixel progressive scan Exmor CMOS
• H.264 & MJPEG dual-stream encoding
• 25/30fps@1080P(1920×1080)
• DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.3~12mm varifocal lens (3200)
• 3~9mm varifocal motorized lens (3202)
• Built-in 2/1 alarm in/out
• Max. IR LEDs length 20m
• Micro SD memory, IP66, IK10, PoE
Technical Specifications:
Camera
• Image Sensor: 1/2.8” 2Megapixel PS Exmor CMOS
• Effective Pixels: 1920(H)x1080(V)
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3~1/10000
• Min. Illumination: Color: 0. 2Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
• S/N Ratio: >50dB
• Video Output: 1 channel, BNC(1.0Vp-p/75O)
Camera Features
• Max. IR LEDs Length: 20m
• Day/Night: Auto(ICR)/Color/B/W
• Backlight Compensation: BLC / HLC / DWDR
• White Balance: Auto
• Gain Control: Auto/Manual
• Noise Reduction: 2D
• Privacy Masking: Up to 4 areas
Lens
• Focal Length: 3.3-12mm
• Max Aperture: F1.4
• Focus Control: Manual
• Angle of View: H: 79.3°(Wide)~29.8°(Tele)
• Lens Type: Manual / Auto Iris (DC)
• Mount Type: Board-in Type
Video
• Compression: H.264 / MJPEG
• Resolution: 1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)
• Frame Rate: Main Stream: 1080P/720P(1 ~ 25/30fps); Sub Stream: D1/CIF(1 ~ 25/30fps)
• Bit Rate: H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 20480Kbps
Audio
• Compression: G.711a / G.711u (64kbps) / PCM(128kbps)
• Interface: 1/1 channel In/Out
Network
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• ONVIF: ONVIF Ver. 2.0
• Max. User Access: 10 users
• Smart Phone: iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot: Micro SD, Max 32GB
• Alarm: 1/1 channel In/Out
General
• Power Supply: DC12V/AC24V, PoE(802.3af)
• Power Consumption: <10W
• Working Environment: -10°C~+60°C, 10%~90%
• Protection Level: IK10 & IP66

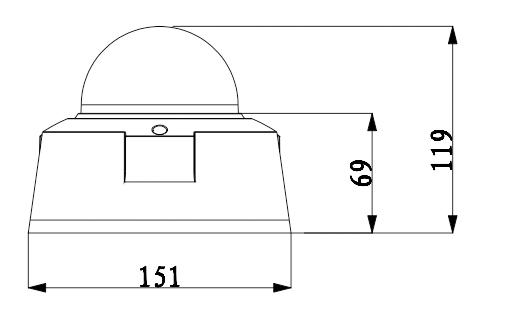

• Dimensions: F151mm×119mm
• Weight: 1.25kg
