Price (inc. VAT): 58.08 €
Ask for the balance

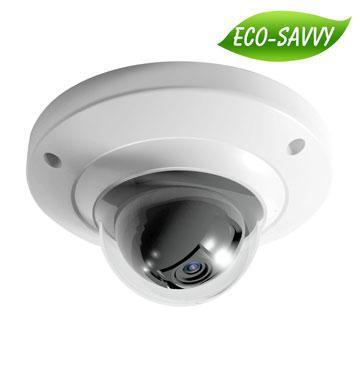

IP network camera HD DOME4100C
Features:
• 1/3” 1.3Megapixel progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 25/30fps@1.3M(1280× 960)
• Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.6mm fixed lens (2.8mm,6mm optional)
• Micro SD memory, IP66, IK10, PoE
Technical Specifications:
Camera
• Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
• Effective Pixels 1280(H)x960(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
• Min. Illumination 0.1lux/F1.8(color)
• S/N Ratio More than 50db
• Video Output N/A
Camera Features
• Max. IR LEDs Length N/A
• Day/Night Auto(Electronic)/Color/B/W
• Backlight Compensation Off/BLC/HLC/DWDR
• White Balance Auto/Manual
• Gain Control Auto/Manual
• Noise Reduction 3D
• Privacy Masking Up to 4 areas
Lens
• Focal Length 3.6mm (2.8mm,6mm optional)
• Max Aperture F1.8(F2.0, F1.8)
• Focus Control Manual
• Angle of View H:70°(89°/46.5°)
• Lens Type Fixed Lens
• Mount Type Board-in Type
Video
• Compression H.264/ MJPEG
• Resolution 1.3M(1280× 960)/720P(1280× 720)/D1(704× 576/704× 480)/CIF(352× 288/352× 240)
• Frame Rate Main Stream 1.3M/720P(1 ~ 25/30fps)
• Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate H.264: 32K ~ 8192Kbps
Audio
• Compression N/A
• Interface N/A
Network
• Ethernet RJ-45 (10/100Base-T)
• Wi-Fi N/A
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
• ONVIF ONVIF Profile SDH-IPC-HDB4100C
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot Micro SD, Max 64GB
• RS485 N/A
• larm N/A
• PIR Sensor Range N/A
General
• Power Supply DC12V, PoE(802.3af)
• Power Consumption Max 2.5W
• Working Environment -20°C~+60°C, Less than 95% RH
• Ingress Protection IK10
• Vandal Resistance IP66
• Dimensions F110mm× 54mm
• Weight 0.25kg
