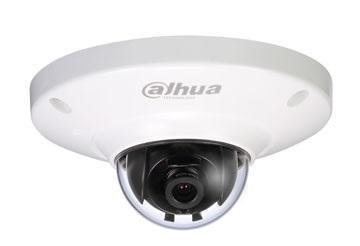

IP network camera Full HD HD1300CP
Features:
• 1/3” 3Megapixel progressive scan CMOS
• H.264 & MJPEG dual-stream encoding
• Max 20fps@3M(2048× 1536)&25/30fps@1080P(1920× 1080)
• DWDR, Day/Night(ICR), AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 2.8mm fixed lens (6mm optional)
• PoE
Technical Specifications:
Camera
• Image Sensor 1/3” 3Megapixel progressive scan CMOS
• Effective Pixels 2048(H)x1536(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
• Min. Illumination Color: 0. 1Lux/F1.6; 0Lux/F1.6 (IR on)
• S/N Ratio More than 50dB
• Video Output N/A
Camera Features
• Max. IR LEDs N/A
• Day/Night Auto(Electronic) / Color / B/W
• Backlight Compensation BLC /HLC /DWDR
• White Balance Auto/Manual
• Gain Control Auto/Manual
• Noise Reduction 2D
• Privacy Masking Up to 4 areas
Lens
• Focal Length 2.8mm (6mm optional)
• Max Aperture F1.6(F1.6)
• Focus Control Manual
• Angle of View H: 90°/45.3°
• Lens Type Fixed lens
• Mount Type Board-in Type
Video
• Compression H.264/ MJPEG
• Resolution 3M(2048× 1536)/1080P(1920× 1080) / 720P(1280× 720) / D1(704× 576/704× 480) /CIF(352× 288/352× 240)
• Frame Rate Main Stream 3M(1~20fps)/1080P/720P(1 ~ 25/30fps, Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate H.264: 16K ~ 8192Kbps
Audio
• Compression N/A
• Interface N/A
Network
• Ethernet RJ-45 (10/100Base-T)
• Wi-Fi N/A
• Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
• Compatibility ONVIF, CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot N/A
• RS485 N/A
• Alarm N/A
• PIR Sensor Range N/A
General
• Power Supply DC12V, PoE (802.3af)
• Power Consumption Max 3W
• Working Environment -30°C~+60°C, Less than 95%RH
• Ingress Protection N/A
• Vandal Resistance N/A
• Dimensions F110mm×54mm
• Weight 0.25Kg
