Product category: IP Network camera »

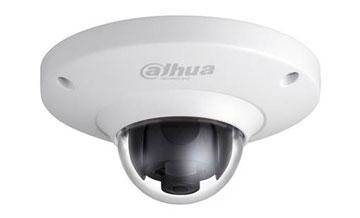

5Mp Fish-Eye IP camera IPC-EB5500P
Features:

• 1/3” 5Megapixel progressive scan CMOS
• H.264 & MJPEG dual-stream encoding
• Max 12fps@5M(2560×1920), 25/30fps@UXGA
• Day/Night(Electronic), 3DNR, AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 1.18mm fixed lens
• Micro SD memory, IK10, PoE


Technical Specifications:

Camera
• Image Sensor 1/3” 54Megapixel progressive scan CMOS
• Effective Pixels 2592(H)x1944(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual 1/3(4)~1/100000s
• Min. Illumination 0.01lux/F2.0(color) ,0.001Lux@F2.0(B/W)
• S/N Ratio More than 50dB
• Video Output N/A
Camera Features
• Max. IR LEDs Length N/A
• Day/Night Auto(Electronic)/Color/B/W
• Backlight Compensation BLC/HLC/DWDR
• White Balance Auto/Manual
• Gain Control Auto/Manual
• Noise Reduction 3D
• Privacy Masking Up to 4 areas
Lens
• Focal Length 1.42mm
• Max Aperture F2.6
• Focus Control Manual
• Angle of View H:185°
• Lens Type Fixed lens
• Mount Type Board-in Type
Video
• Compression H.264/ MJPEG
• Resolution 5M(2560?1920)/3M(2048×1520)/UXGA(1600×1200)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
• Frame Rate Main Stream 5M(1~12fps)/ UXGA (1 ~ 25/30fps)Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate H.264: 20K ~ 8192Kbps
Audio
• Compression G.711a/G.711u/PCM
• Interface 1/1 channel In/Out(Built in Mic)
Network
• Ethernet RJ-45 (10/100Base-T)
• Wi-Fi N/A
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• Compatibility ONVIF,PSIA,CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot Micro SD, Max 64GB
• RS485 N/A
• Alarm 1/1 channel In/Out
• PIR Sensor Range N/A
General
• Power Supply DC12V,PoE
• Power Consumption Max 6W
• Working Environment -30°C~+60°C, Less than 95% RH
• Ingress Protection N/A
• Vandal Resistance IK10
• Dimensions F110mm×54mm
• Weight 0.25kg
