Price (inc. VAT): 175.45 €
In stock

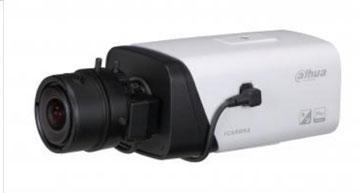

IP network camera 3M Full HD HF8301EP
Features:
• 1/3" 3 Megapixel progressive scan CMOS
• Support H.264/MJPEG dual codec
• Smart triple streams supported
• Max 25/30fps@3MP(2048x1536)
• Ultra WDR (Wide Dynamic Range) up to 120dB
• Ultra 3D DNR
• Ultra Defog, ROI, EIS
• Smart detection: Face detection, Tripwire detection, Intrusion detection, Scene change detection
• Auto back focus
• Bulit-in Mic
• 100/1000M Base-T Ethernet
Technical Specifications:
Camera
• Image Sensor: 1/3” 3Megapixel CMOS
• Effective Pixels: 2048(H)x1536(V)
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual, 1/3~1/10000s
• Min. Illumination: Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
• S/N Ratio: More than 52dB
• Video Output: 1 channel BNC(1.0Vp-p,75O)
Camera Features
• Max. IR LEDs Length: N/A
• Day/Night: Auto(ICR)/Color/B/W
• Backlight Compensation: BLC / HLC / WDR 120dB
• White Balance: Auto/Manual
• Gain Control: Auto/Manual
• Noise Reduction: Ultra 3D
• Privacy Masking: Up to 4 areas
• EIS: Support
• Ultra Defog: Support
• Smart focus: ABF
Lens
• Mount Type: C/CS
Video
• Compression: H.264/MJPEG
• Resolution: 3M(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)
• Frame Rate: Main Stream: 3M/1080P (1~25/30fps); Sub Stream: D1/CIF(1 ~ 25/30fps); Third Stream: 1080P/720P/D1(1 ~ 25/30fps)
• Bit Rate: H.264: 48K ~ 8192Kbps
• ROI: Up to 4 areas
Audio
• Compression: G.711a / G.711u
• Interface: 2/1 channel In/Out
Smart Function
• Smart detection: Tripwire, Intrusion, Scene change, Missing/Abandoned, Audio detect, Face detect
Network
• Ethernet: RJ-45 (10/100/1000Base-T)
• Wi-Fi: N/A
• Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• Compatibility: ONVIF, PSIA, CGI
• Max. User Access: 20 users
• Smart Phone: iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot: Micro SD, Max 64GB
• Alarm: 2/1 channel In/Out
General
• Power Supply: DC12V(AC24V optional), PoE (802.3af)
• Power Consumption: Max 3.5W
• Working Environment: -20°C~+60°C, Less than 95% RH
• Ingress Protection: N/A
• Dimensions: 71.4mm×65.5mm×135.4mm
• Weight: 0.3Kg
