Price (inc. VAT): 43.56 €
In stock

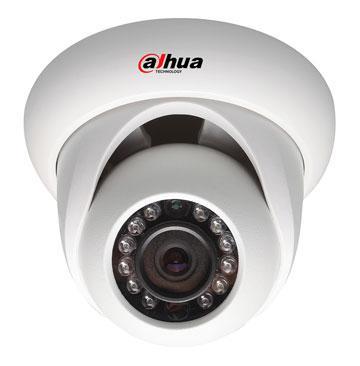

IP network cameraHD HDW1000SP
Features:
• 1/4” 1Megapixel progressive scan CMOS
• H.264 & MJPEG dual-stream encoding
• Max 25/30fps@720P(1280× 720)
• DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 2.8mm fixed lens (3.6mm,6mm optional)
• Max. IR LEDs Length 20m
• IP66, PoE
Technical Specifications:
Camera
• Image Sensor 1/4” 1Megapixel progressive scan CMOS
• Effective Pixels 1280(H)x720(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
• Min. Illumination 0. 01Lux/F1.8( Color), 0Lux/F1.8 (IR on)
• S/N Ratio More than 50dB
• Video Output N/A
Camera Features
• Max. IR LEDs Length 20m
• Day/Night Auto(ICR) / Color / B/W
• Backlight Compensation BLC /HLC /DWDR
• White Balance Auto/Manual
• Gain Control Auto/Manual
• Noise Reduction 3D
• Privacy Masking Up to 4 areas
Lens
• Focal Length 2.8mm (3.6mm,6mm optional)
• Max Aperture F1.8(F1.8/F1.8)
• Focus Control Manual
• Angle of View H: 75.5°(89°/48.5°)
• Lens Type Fixed lens
• Mount Type Board-in Type
Video
• Compression H.264B/H.264/ MJPEG
• Resolution 720P(1280× 720)/D1(704× 576/704× 480) /CIF(352× 288/352× 240)
• Frame Rate Main Stream 720P(1 ~ 25/30fps)
• Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate H.264H: 16K ~ 8Mbps
Audio
• ompression N/A
• Interface N/A
Network
• Ethernet RJ-45 (10/100Base-T)
• Wi-Fi N/A
• Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP,
• SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
• Compatibility ONVIF, CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows PhoneDH-IPC-HDW1000S
Auxiliary Interface
• Memory Slot N/A
• RS485 N/A
• Alarm N/A
• PIR Sensor Range N/A
General
• Power Supply DC12V, PoE (802.3af)
• Power Consumption Max 4.5W
• Working Environment -30°C~+60°C, Less than 95%RH
• Ingress Protection IP66
• Vandal Resistance N/A
• Dimensions F113.6mm x 85.8mm
• Weight 0.29Kg
