Price (inc. VAT): 93.17 €
In stock

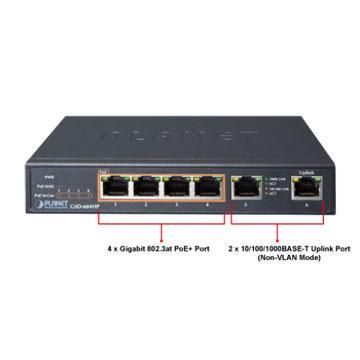

PoE switch 1G 4ch. + 2 uplink
Features:• RJ45 Interface• 6 10/100/1000Mbps Gigabit Ethernet ports• 4 ports support 54V DC power to PoE powered devicePower over Ethernet• Complies with IEEE 802.3af/at Power over Ethernet end-span PSE• Up to 4 IEEE 802.3af/at devices powered• Supports PoE power up to 30 watts for each PoE port• 55-watt PoE budget• Auto detects powered device (PD)• Circuit protection prevents power interference between ports• Remote power feeding up to 100mSwitching• Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X• Flow control for full duplex operation and back pressure for half duplex operation• 9216 bytes jumbo packet size support• Integrates address look-up engine, supporting 8K absolute MAC addresses• Automatic address learning and address aging• Supports port-based VLAN and loop protectionHardware• LED indicators for PoE ready and LINK/ACT• One 55V DC power jackTechnical Specifications:• Network Connector 6-port RJ45 for 10/100/1000BASE-T, auto MDI / MDIX• PoE Inject Port 4-port with 802.3af/at PoE injector function (port 1 to port 4)LED Display System: • Power (Green)• Per PoE port: • PoE (Orange, port 1 to port 4)• PoE max. (Orange)• Ethernet port:• 1000 LNK (Green)• 10/100 LNK (Orange)• Thermal Fan Fanless design• Switch Architecture Store and Forward switch architecture• MAC Address Table 8K MAC address table with auto learning function• Switch Fabric 12Gbps• Switch Throughput 8.92Mpps @64 bytes• Jumbo Packet 9216 bytes• Flow Control Back pressure for half-duplex• IEEE 802.3x pause frame for full-duplex• Power Requirements 55V DC, 1.1A• ESD Protection 6kV DC• Power Consumption Max. 60 watts, 204.6 BTU• Dimensions (W x D x H) 160 x 92.5 x 28 mm• Weight 374gPower over Ethernet• PoE Standard IEEE 802.3af Power over Ethernet/PSE• IEEE 802.3at Power over Ethernet Plus/PSE• PoE Power Supply Type End-span• Power Pin Assignment 1/2(+), 3/6(-)• PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)• Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)• PoE Power Budget 55 wattsStandard Conformance• EMI Safety FCC Class B, CE• Standard Compliance IEEE 802.3 Ethernet• IEEE 802.3u Fast Ethernet• IEEE 802.3ab Gigabit Ethernet• IEEE 802.3x Flow Control• IEEE 802.3af Power over Ethernet• IEEE 802.3at Power over Ethernet PlusEnvironment• Operating Environment 0 ~ 50 degrees C• Storage Environment -10 ~ 70 degrees C• Operating Humidity 5 ~ 95%, relative humidity, non-condensing• Storage Humidity 5 ~ 95%, relative humidity, non-condensing
