Price (inc. VAT): 52.03 €
Ask for the balance

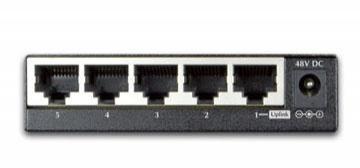

PoE switch 4ch (Total 5ch.), 100Mbp
Features:• Five 10/100Mbps Fast Ethernet ports• Four ports support 56V DC power to PoE Powered Device• One 10/100Mbps uplink port• Complies with IEEE 802.3at / af Power over Ethernet Mid-Span PSE• Up to 4 IEEE 802.3at / af devices powered• Supports PoE Power up to 30 watts for each PoE port• 60-watt PoE Budget• Auto detects powered device (PD)• Circuit protection prevents power interference between ports• Remote power feeding up to 100m• Hardware based 10/100Mbps Auto-Negotiation and Auto MDI/MDI-X• Flow control for Full Duplex operation and back pressure for Half Duplex operation• 1536bytes packet size support• Integrates address look-up engine, supporting 1K absolute MAC addresses• Automatic address learning and address aging• Desktop palm size• LED indicators for PoE ready / activity and LINK / ACT• One DC 56V power jackTechnical Specifications:• Network Connector: 5-Port RJ-45 for 10/100Base-TX, auto MDI / MDIX• PoE Inject Port: 4 ports with 802.3at / af PoE injector function (port 2 to port 5)• PoE Standard: IEEE 802.3af Power over Ethernet / PSE, IEEE 802.3at Power over Ethernet Plus / PSE• PoE Power Supply Type: Mid-Span• Power Pin Assignment: 4/5(+), 7/8(-)• PoE Power Output: Per Port 56V DC, 375mA. Max. 15.4 watts (IEEE 802.3af)• Per Port: 56V DC, 375mA. Max. 30 watts (IEEE 802.3at)• PoE Power Budget: 60 watts• Number of 802.3af PD Class 0, 1, 2, 3 can be powered: 4• Number of 802.3at PD Class 1, 2, 3 can be powered: 4• Number of 802.3at PD Class 0, 4 can be powered: 2• Standard Compliance: IEEE 802.3:Ethernet, IEEE 802.3u:Fast Ethernet, IEEE 802.3x:Flow Control, IEEE 802.3af:Power over Ethernet, IEEE 802.3at:High Power over Ethernet• Switch Architecture: Store and Forward switch architecture• MAC Address Table: 1K MAC address table with auto learning function• Switch Fabric: 1Gbps• Switch Throughput: 0.74Mpps @64Bytes• Maximum Packet Size: 1536Bytes• Flow Control: Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex• Power Requirements: DC 56V, 1.5A.• Power Consumption: Max.62 watts / 211.5 BTU• Dimensions (W x D x H): 90 x 80 x 21 mm• Weight: 172g
