Price (inc. VAT): 808.58 €
In stock

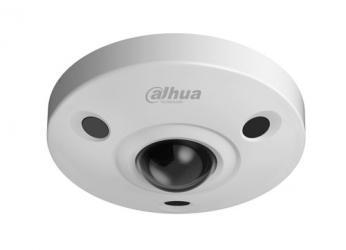

FishEye4K IP network camera 6M EBW8600P
Features:
• 1/1.8” 6Megapixel progressive scan CMOS
• H.264 &MJPEG dual-stream encoding
• Max 25/30fps@6.0M(3072x2048)
• Multiple De-wrap Mode: Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures
• DWDR, Day/Night(ICR), 3DNR,ROI,AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• Max.IR LEDs Length 10m
• 1/1 Audio in/out(Built in Mic)
• Micro SD memery,IP67,IK10,PoE
Technical Specifications:
Camera
• Image Sensor: 1/1.8” 6Megapixel progressive scan CMOS•Effective Pixels 3072(H)x2048(V)
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3(4)~1/10000
• Min. Illumination: 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)
• S/N Ratio: More than 50dB
• Video Output: N/A
Camera Features
• Max. IR LEDs Length: 10m
• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC/ HLC/ DWDR
• White Balance Auto/Manual
• Gain Control: Auto/Manual
• Noise Reduction: 3D
• Privacy Masking: Up to 4 areas
Lens
• Focal Length: 1.55mm
• Max Aperture: F2.0
• Focus Control Manual
• Angle of View 185°/185°/185°
• Lens Type: Manual
• Mount Type: Board-in Type
Video
• Compression: H.264H/H.264/MJPEG/JPEG
• Resolution: 6M(3072×2048)/3M(2048×1536)/1080P(1920×1080)
• Frame Rate: Main Stream: 6M/(1 ~ 25/30fps)
• Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate: 40Kbps~8192Kbps
• De-wrap Mode Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures
Audio
• Compression: G.711a/G.711u/PCM
• Interface: 1/1 channel In/Out(Built in Mic)
Network
• Ethernet: RJ-45 (100/1000Base-T)
• Wi-Fi N/A
• Protocol: HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE,IPv4/v6,SNMP,QoS,UPnP,NTP
• Compatibility ONVIF PSIA CGI
• Max. User Access: 20users
• Smart Phone: iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot: Micro SD, up to 64GB
• RS485 N/A
• Alarm 2/1 channel In/Out
• PIR Sensor Range: N/A
General
• Power Supply DC12V, PoE (802.3at)
• Power Consumption: <11W
• Working Environment: -30°C~+60°C, Less than 95%RH
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Dimensions: F150mm x 50.7mm
• Weight: 0.58kg(0.86kg with packaging )
