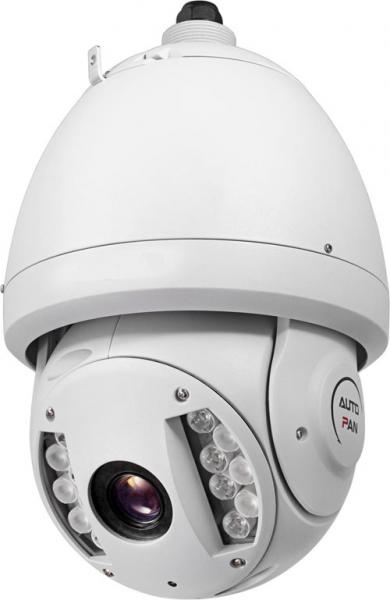

Features:

▪ 1/4” Progressive Scan EXview HAD CCD
▪ High resolution of 600TVL (Color), 650TVL (B/W)
▪ Min. illumination of 0.04/0.04/0.1Lux (Color), 0.01/0.005/0.01Lux (B/W)
▪ Powerful 28x optical zoom and 12x digital zoom
▪ WDR, Day/Night (ICR), DNR (3D/2D), Auto iris, Auto focus, AE, AWB, AGC, BLC
▪ Up to 24 privacy masking areas
▪ Max 240 °/s pan speed, 360° continuous pan rotation & auto flips with no blind spot monitor
▪ Up to 255 preset, 5 auto scan, 8 tour, 5 pattern
▪ Auto recognition of general protocols such as DH-SD, Pelco-P/D, and etc
▪ Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate
▪ Auto restore to previous PTZ and lens status after power failure
▪ Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time
▪ Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up)
▪ OSD and operation prompts of various languages
▪ Build-in 7/2 Chanel input/output
▪ Unique 3D positioning function
▪ IP66 all-environments protection, 4000V thunder-proof
▪ Easy installation with user-friendly designs
▪ IR Lamp: The longest distance of the build-in IR lamp is over 80m

Technical Specifications:

▪ Image Sensor : 1/4” Progressive Scan EXview HAD CCD
▪ Effective Pixels: PAL: 752(H) x 582(V)
▪ Horizontal Resolution: 600TVL(Color), 650TVL(B/W)
▪ Min. Illumination: 0.04Lux/F1.35(Color), 0.005Lux/F1.35(B/W)
▪ Lens: 28x zoom f=3.5mm(wide) ~ 98.0mm(tele), F1.35 ~ F3.7
▪ Digital Zoom 12x
▪ Angle of View: 55.8°(wide) ~ 2.1°(tele)
▪ Close Focal Distance: 10mm(wide) ~ 1500mm(Tele)
▪ Electronic Shutter: PAL: 1/3 ~ 1/10000 sec. (20 steps)
▪ WDR: ON/OFF/AUTO
▪ Day/Night: ICR, ON/OFF/AUTO
▪ 3D Noise Reduction: ON/OFF (level 5 to 1 / OFF, 6 steps)
▪ Gain: Auto/Manual/Max. Gain Limit (-3 dB to +28 dB, 2 dB steps)
▪ Exposure Control: Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
▪ BLC: ON/OFF
▪ White Balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual
▪ Picture Effects: E-Flip, Nega Art, Black & White, Mirror image, Color Enhancement
▪ S/N Ratio: Above 50 dB
▪ Privacy Masking: ON/OFF (up to 24 privacy masking areas)
▪ Video Output: BNC(1.0Vp-p / 75Ω), PAL
▪ Dome Drive: Pan/Tilt Range
▪ Horizontal: 0°~360° endless, Vertical: -2°~90° auto flip 180° to continue monitor
▪ Manual Control Speed: Horizontal: 0.1° ~160° /s, Vertical: 0.1° ~120° /s
▪ Preset Speed: Horizontal: 240° /s, Vertical: 200° /s
▪ Preset: 255
▪ PTZ Mode: 5 Auto Pattern, 8 Auto Tour, 5 auto scan
▪ 3D Positioning Yes
▪ Speed Setup: Human-oriented focal Length/ speed adaptation
▪ Info Display: Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.
▪ Power up Action: Auto restore to previous PTZ and lens status after power failure
▪ Idle Motion: Activate preset/scan/tour/ patter if there is no command in the specified period.
▪ Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time
▪ Alarm: 7/2 alarm input/output, Triggering Preset/Tour/Pattern/Scan/On-off Output
▪ IR: OSRAMIR Lamp, 1.5W, SMT, Sound Ventilation, Auto/close lamp/far lamp/off , 850nm illumination wavelength
▪ Remote Upgrade: Yes, RS485
▪ Protocol: DH-SD, Pelco-P/D, Auto recognition of general protocols
▪ Power Supply: AC 24V/3A (±10%)
▪ Power Consumption: 12W/30W(IR lamp on)
▪ Working Temperature: -20ºC ~ 60ºC
▪ Working Humidity <90%
▪ Protection Level: IP66, 4000V thunder, surge and wave protection
▪ Dimension Φ230(mm) x 352(mm)
▪ Weight 7.0kg
