Price (inc. VAT): 484.82 €
Ask for the balance

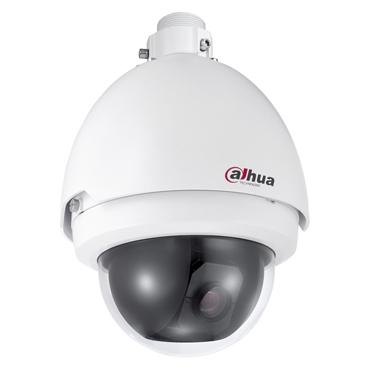

PTZ Camera 36x zoom SD6336-H
36x Cost-effective Weatherproof PTZ Dome Camera36x optical zoom, 1/4" Super HAD CCD II, Effio-S, 600TVL, IP67FeaturesCamera> Effio-S brings low-light and high-resolution images> High resolution of 600TVL(Color), 650TVL(B/W)> Mini. Illumination of 0.001Lux @F1.6(Color), 0.0001Lux @F1.6(B/W)> Powerful 23x/30x/37x/23x optical zoom> Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLCDome Drive> Max 300 °/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor> Up to 255 preset, 5 auto scan, 8 tour, 5 pattern> Auto recognition of general protocols such as DH-SD, Pelco-P/D, and etc> Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate> Auto restore to previous PTZ and lens status after power failure> Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time> Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up)> OSD and operation prompts of various languages> Unique 3D positioning function> IP67 all-environments protection, 4000V thunder-proof, auto constant temperature & anti-fogTechnical SpecificationsCAMERAImage Sensor 1/4" Super HAD CCD IIEffective Pixels PAL: 752(H) x 582(V)NTSC: 768(H) x 494(V)Horizontal Resolution 600TVL(Color), 650TVL(B/W)Min. Illumination Color: 0.01 Lux/F1.6(AGC ON,Slow Shutter ON) B/W: 0.001Lux/F1.6(AGC ON,Slow Shutter ON)Lens Optical zoom: 37x f= 3.4 mm(wide) ~ 125.8 mm(tele), (F1.6~4.5)Digital Zoom 16xAngle of View 57.8°(wide) ~ 1.7° (tele)Close Focal Distance 100mm (wide) ~ 1500mm (Tele)Electronic Shutter Auto: 1/s~1/100,000sManual: 1/s~1/10,000sDay/Night ICRNoise Reduction Off / 2D / 3DGain Control Auto/ManualExposure Control Auto / Manual / Shutter priority / Iris priority / Bright mode, Exposure CompensationBLC ON/OFFWhite Balance AWB (3000 to 7500K), ATW(2000 to 1000K), Indoor(3200K), Outdoor(5800K), ManualPicture Effects Sharpness, Image mirror, Image freezeS/N Ratio More than 50 dBVideo Output CVBS: 1.0Vp-p / 75?Dome DrivePan/Tilt Range Horizontal: 0°~360°endless, Vertical: -2°~90° auto flip 180° to continue monitorManual Control Speed Horizontal: 0.1°~300°/s, Vertical: 0.1°~150°/sPreset Speed Horizontal: 300°/s, Vertical: 180°/sPreset 255PTZ Mode 5 Auto Pattern, 8 Auto Tour, 5 auto scan3D Positioning YesSpeed Setup Human-oriented focal Length/ speed adaptationInfo Display Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.Power up Action Auto restore to previous PTZ and lens status after power failure Idle Motion Activate preset/scan/tour/ patter if there is no command in the specified period. Time Task Auto activation of Preset/Scan/Tour/ Pattern by preset-timeRemote Upgrade Yes, RS485Protocol DH-SD, Pelco-P/D, Auto recognition of general protocolsGeneralPower Supply AC 24V/1.5A(±10%)Power Consumption 12W(Indoor), 24W(Outdoor, heater on)Working Temperature -40?C ~ 60?CWorking Humidity <90%Protection Level IP67, 4000V thunder, surge and wave protectionDimension 222(mm) x 322(mm)Weight 5.0kg
