Price (inc. VAT): 491.68 €
Ask for the balance

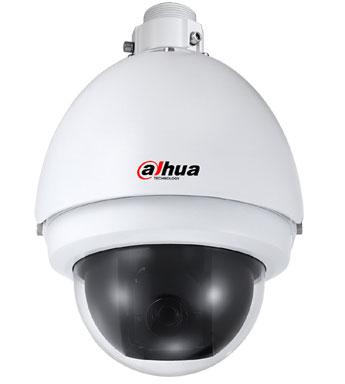

PTZ Camera 23x zoom
23x Cost-effective Weatherproof PTZ Dome Camera23x optical zoom, 1/4" Super HAD CCD II, Effio-S, 600TVL, IP67FeaturesCamera> Effio-S brings low-light and high-resolution images> High resolution of 600TVL(Color), 650TVL(B/W)> Mini. Illumination of 0.001Lux @F1.6(Color), 0.0001Lux @F1.6(B/W)> Powerful 23x optical zoom> Day/Night (ICR), DNR (3D), Auto iris, Auto focus, AWB, AGC, BLCDome Drive> Max 300 °/s pan speed, 360° continuous pan rotation & auto flip with no blind spot monitor> Up to 255 preset, 5 auto scan, 8 tour, 5 pattern> Auto recognition of general protocols such as DH-SD, Pelco-P/D, and etc> Speed setup according to the focal distance, auto rotation speed adjust in accordance with the lens zoom rate> Auto restore to previous PTZ and lens status after power failure> Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-time> Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up)> OSD and operation prompts of various languages> Unique 3D positioning function> IP67 all-environments protection, 4000V thunder-proof, auto constant temperature & anti-fogTechnical SpecificationsCAMERA:Image Sensor: 1/4" Super HAD CCD IIEffective Pixels: PAL: 752(H) x 582(V)NTSC: 768(H) x 494(V)Horizontal Resolution: 600TVL(Color), 650TVL(B/W)Min. Illumination: Color: 0.01 Lux/F1.6(AGC ON,Slow Shutter ON) B/W: 0.001Lux/F1.6(AGC ON,Slow Shutter ON)Lens: Optical zoom: 23x f= 3.9 mm(wide) ~ 89.7 mm(tele), (F1.6~3.7)Digital Zoom: 10xAngle of View: 38.5°(wide) ~ 1.8° (tele)Close Focal Distance: 100mm (wide) ~ 1000mm (Tele)Electronic Shutter: Auto/ Manual: 1/50(60)s~1/10,000sDay/Night: ICRNoise Reduction: Off / 3DGain Control: Auto/ManualExposure Control: Auto, ManualBLC: ON/OFFWhite Balance: AWB (3000 to 7500K), ATW(2700 to 9500K), ManualPicture Effects: Sharpness, Image mirror, Image freezeS/N Ratio: More than 50 dBVideo Output: CVBS: 1.0Vp-p / 75?DOME DRIVEPan/Tilt Range: Horizontal: 0°~360°endless, Vertical: -2°~90° auto flip 180° to continue monitorManual Control Speed: Horizontal: 0.1°~300°/s, Vertical: 0.1°~150°/sPreset Speed: Horizontal: 300°/s, Vertical: 180°/sPreset : 255PTZ Mode: 5 Auto Pattern, 8 Auto Tour, 5 auto scan3D Positioning: YesSpeed Setup: Human-oriented focal Length/ speed adaptationInfo Display: Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.Power up Action: Auto restore to previous PTZ and lens status after power failure Idle Motion: Activate preset/scan/tour/ patter if there is no command in the specified period. Time Task: Auto activation of Preset/Scan/Tour/ Pattern by preset-timeRemote Upgrade : Yes, RS485Protocol: DH-SD, Pelco-P/D, Auto recognition of general protocolsGENERALPower Supply: AC 24V/1.5A(±10%)Power Consumption: 12W(Indoor), 24W(Outdoor, heater on)Working Temperature: -40?C ~ 60?CWorking Humidity: <90%Protection Level: IP67, 4000V thunder, surge and wave protectionDimension: 222(mm) x 322(mm)Weight: 5.0kg
