Price (inc. VAT): 5590.20 €
Ask for the balance

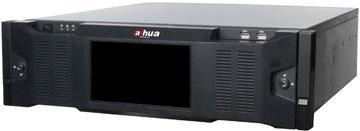

IP Network recorder 128 ch NVR
Features:
• Up to 128ch IP camera input
• Max 384Mbps incoming bandwidth
• Up to 64ch@1080P, 128ch@720P, 128ch@D1 realtime recording
• Up to 6-screen output: 6 HDMI sync output/1 VGA+5 HDMI sync output (Default: 2 HDMI or 1
HDMI +1 VGA)
• Support 16 hot-swap SATA HDDs to better its scalability and flexibility
• Support RAID 0/1/5/6/10/50/60
• Human-oriented Dahua UI
• Compatible with Dahua SDK and seamless integrated to other platforms
• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
• ONVIF Version 2.3 conformance
Technical Specifications:
System
• Main Processor Intel® Core™ i5 Processors
• Operating System Embedded LINUX
• Motherboard Embedded Board (Support 7x24 operation)
• Memory 4GB DDR3 (up to 8GB)
• Case Hot-dipped galvanized sheet steel (1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design
• Fan Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation
• Interface Local GUI & WEB GUI
Video & Audio
• Input Max 384Mbps
• Transmission 64ch@1080P/128ch@720P/128ch@D1
• Recording 64ch@1080P/128ch@720P/128ch@D1
• Preview 8ch@1080P/16ch@720P/32ch@D1(Screen 1 2 ) +16ch@1080P/16ch@720P/16ch@D1(Screen 3 6) (Optional)
• Playback 5ch@1080P/10ch@720P/20ch@D1(Screen 1)
Recording
• Resolution 8Mp, 5Mp, 3Mp, 1080P, 720P, 960H, D1, CIF, QCIF, VGA
• Audio 1ch Mic in, 1/1ch audio in/out
Recording
• Recording Mode Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
• Alarm Recording Video loss, Camera blank, Motion detection, External alarm
• Backup Mode Network download/USB HDD/USB CD&DVD-RW/eSATA Device
Display
• Interface 6 HDMI, 1 VGA (Default: 2 HDMI, 1 VGA )
• Video Output 6 HDMI, or 1ch VGA(or built-in LCD) & 5ch HDMI sync video output (Default: 2 HDMI, or 1 VGA(or built-in LCD) & 1ch HDMI sync video output )
• Multi-screen Display The 1st screen: 1/4/6/8/9/16/25/36/64 The 2nd -6 th screens: 4
• Privacy Masking Four customized zones for privacy masking for each area
Storage
• Internal HDD 16 SATA ports, up to 64TB
• HDD Mode Single, Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60 (Support global HDD Hot-standby)
• HDD Installation Independent HDD rack, support hot swap
Network
• Interface 4 RJ-45 ports (10/100/1000Mbps)
• Ethernet Port 4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports
MD & Alarm
• Motion Detection Zones: 396(22× 18), Sensitivity: 1~6 (level 6 is highest)
• Alarm Input 16ch, low level effective, green terminal interface
• Relay Output 8ch, Relay contact (1A@24VDC), NO/NC programmable, green terminal interface
Auxiliary Interface
• Front cover Support hot swap
• USB 4 USB ports (2 on the front-panel, 2 on the rear panel), USB2.0
• eSATA 1 eSATA port
• RS485 1 port, for PTZ control
General
• Power Supply AC 100V~240V, 47~63Hz AC 100V~240V, 47~63Hz ,
• 60W (Without HDD)
• Working Environment -10°C~55°C
• Working Humidity10%~80% (non-condensation)
• Dimension (W× D× H) 3U, 485mm× 448mm× 133.2mm
• Weight 20kg (without HDD)
• Installation Rack-mounted
