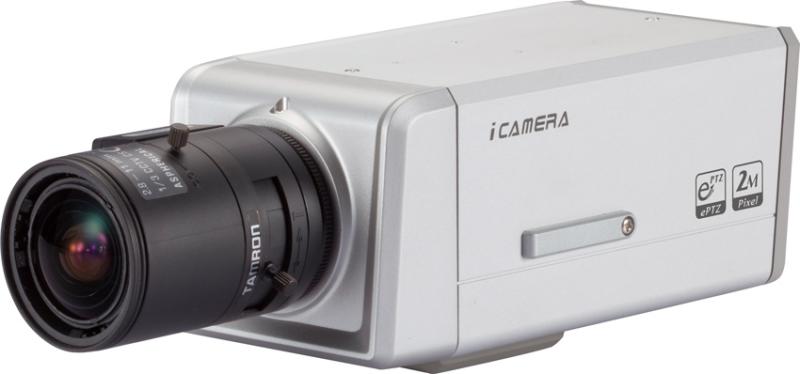

IP network camera 2M 2200
Features:
• 1/3” 2.0 Megapixel Micron CMOS image sensor
• High-performance TI DaVinci series DSP
• H.264 video compression and JPEG image capture
• 15fps at UXGA(1600×1200)and 25/30fps at 720P/SVGA/D1 resolution
• Dual encoding streams supported
• Multi-zone video detection and privacy masking
• 1 channel analogue video BNC output
• ePTZ control at 720P/SVGA/D1 resolution
• Support Alarm I/O, RS485 and RS232 interface
• Max 32GB Hot-swappable SD card for local storage
• PoE(IEEE802.3af)
• Built-in web server, NVR, MSS & CMS
Technical Specifications:
General
• Processor TI DaVinci Series DSP
• Operating System Embedded LINUX
• Resource Simultaneous remote monitoring, local recording and remote control
• User Interface WEB, CMS(DSS, PSS)
Camera
• Image Sensor 1/3” 2.0 Megapixel Micron CMOS
• Effective Pixels 1600(H)×1200(V)
• Electronic Shutter Auto, 1/50~1/10000s Auto, 1/60~1/10000s
• Mini. Illumination 0.5LUX/F1.2
• Signal Noise Ratio >50dB
• Gain Control Auto
• White Balance Auto/Manual
• Day/Night Yes
• Lens CS-mount , Selectable
• Lens Control Zoom: Manual
• Focus: Manual
• Iris: Manual
Video
• Video Compression H.264/JPEG
• Resolution UXGA(1600×1200) / SVGA(800×600) / 720P(1280×720) / D1(704×576) / HD1(352×576) / CIF(352×288) / QCIF(176×144) / VGA(640×480)/ QVGA(320×240) / QQVGA(160×128)
• Encoding Speed Main Stream: UXGA (1~15fps),
• Others(1~25fps)
• Main Stream: UXGA (1~15fps),
• Others(1~30fps)
• Extra Stream: D1/HD1/CIF/QCIF/VGA (1~25fps)
• Bit Rate 32K~8Mbps
• Snapshot Fastest 1fps JPEG capture
• Video Format PAL NTSC
• Analogue Video Output 1 channel BNC(1.0Vp-p, 75?)DH-IPC-F725P/N(-W)
Audio
• Audio Compression PCM(64Kbps) / G.711a(32Kbps) / AMR(10.2Kbps)
• Input 1 channel 3.5mm Jack Mic in
• 1 channel 3.5mm Jack Speak out
Network
• Ethernet RJ-45(10/100Base-T)
• Network Functions HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP
• Filter, PPPOE, DDNS, FTP, , Alarm Server
• Remote Operation Monitor, PTZ control, Playback, System setting, File download, Log, nformation, Maintenance & Upgrade
Auxiliary Interface
• SD Card Max 32GB, local storage
• RS232 PC communication
• RS485 PTZ control
• larm 2 Input / 1 Output
Environmental
• Power Supply DC 12V, PoE
• Power Consumption 5W
• Operating Environment -10°C~+55°C, 10%~90%
• Dimension 58mm×69mm×139mm
• Weight 650g
