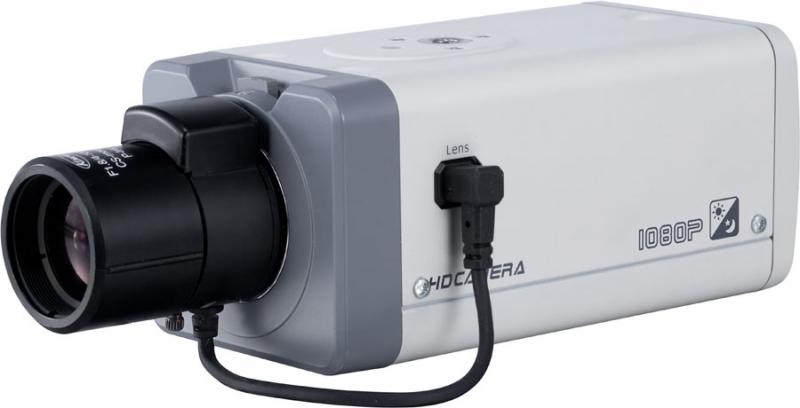

HD-SDI kamera HDCHF3300
3Mp CMOS Full HD HD-SDI Camera
3.0 Megapixel CMOS, 25fps at 1080P, HD-SDI
Features
> 1/2.8" 3.0 Megapixel SONY progressive scan Exmor CMOS image sensor
> High color reproduction and high sensitivity
> Standard HD-SDI high definition digital interface (SMPT274/292)
> Full HD 1080P(1920×1080) HD-SDI video out with 25/30fps
> Support ICR true Day/Night
> Support RS485 System parameters configuration
> Support Dual Power AC24V/DC12V
> Support OSD menu
Technical Specifications
CAMERA
Image Sensor: 1/2.8" 3.0 Megapixel SONY progressive scan CMOS
Effective Pixels: 1920(H)×1080(V)
Min. Illumination: 0.1LUX/F1.2(Color), 0.01LUX/F1.2(B/W)
Electronic Shutter: Manual / Auto, 1/50~1/10'000s
S/N Ratio: 52dB
Gain Control: Auto/ Manual
White Balance: Auto / Manual
Day/Night: ICR
VIDEO
Video Output: 1ch HD-SDI high-definition video (SMPT274/292)
Resolution: 1080P (1920 x 1080)
Frame Rate: 25fps
LENS
Lens Type: Manual / Auto Iris
Mount: CS
OTHER INTERFACE
RS485: System parameters configuration, OSD Menu
GENERAL
Power Supply: AC24V/DC12V
Power Consumption: <8.5W
Working Temperature: -10~+55
Dimension: 70mm×63.2mm×149.5mm
Weight: 650g
