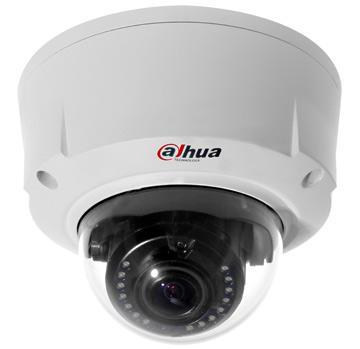

IP network camera WDR HD HDBW3101P
Features:
• 1/3” 1.3Megapixel progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 25/30fps@1.3M(1280×960)&25/30fps@720P(1280×720)
• WDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 2.8~12mm varifocal lens
• Built-in 1/1 alarm in/out
• Max IR LEDs length 20m
• Micro SD memory, IP66, IK10, PoE
Technical Specifications:
Camera
• Image Sensor 1/3” 1.3Megapixel Aptina CMOS
• Effective Pixels 1280(H)x960(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto/Manual 1/3~1/10000 Auto/Manual 1/4~1/10000
• Min. Illumination 0.1lux/F1.4(color),0.005Lux/F1.4(B/W),0Lux(IR on)
• S/N Ratio >50dB
• Video Output 1 channel BNC(1.0Vp-p, 75?)
Camera Features
• Max. IR LEDs Length 20m
• Day/Night Auto(ICR)/Color/B/W
• Backlight Compensation Off/BLC/HLC/WDR(128dB)
• White Balance AUTO
• Gain Control Auto/Manual
• Noise Reduction 2D
• Privacy Masking Up to 4 areas
Lens
• Focal Length 2.8~12mm
• Max Aperture F1.4
• Focus Control Manual
• Angle of View H: 92°(Wide)~27.2°(Tele)
• Lens Type Manual/Auto Iris (DC)
• Mount Type Board-in Type
Video
• Compression H.264 / MJPEG
• Resolution 1.3M(1280×960) /720P(1280×720) /D1(704×576) / CIF(352×288) /1.3M(1280×960) /720P(1280×720) /D1(704×480) / CIF(352×240) /
• Frame Rate Main Stream 1.3M/720P(1 ~ 25/30fps)
• Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Audio
• Compression G.711a / G.711u (64kbps)/ PCM(128kbps)
• Interface 1/1 channel In/Out
Network
• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• ONVIF ONVIF Ver. 2.0 DH-IPC-HDBW3101
• Max. User Access 10 users
• Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
• Memory Slot Micro SD, Max 32GB
• Alarm 1/1 channel In/Out
General
• Power Supply DC12V/AC24V, PoE(802.3af)
• Power Consumption <8W
• Working Environment -10°C~+60°C, 10%~90%
• Protection Level IK10 & IP66
• Dimensions F151x119mm
• Weight 1.0kg
