Features:

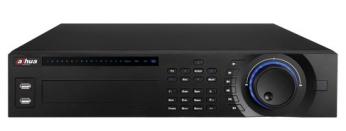

• 4 channel IP and 4 channel analog 2U Hybrid DVR
• Dual-core CPU presents the powerful preview, recording, playback and network performance
• Up to 20 channel with 1080P realtime live view
• H.264/MPEG-4 decoding & H.264 dual-stream encoding
• IP: 4 channel @D1, 2 channel @720P, 1 channel @1080P realtime recording
• Analog: 4 channel @D1(4CIF) realtime recording
• HDMI / VGA / TV/Spot(BNC) synchronous video output
• All channel simultaneous realtime playback, GRID interface & smart search
• Support Multi-brand network cameras such as: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and ONVIF
• Support remote network camera encoding setting & image adjust
• IP Search feature to auto discover network cameras
• Smart video detection: MD, camera blank, video loss
• 3D intelligent positioning with Dahua PTZ dome camera
• Easy backup: USB/eSATA devices, CD/DVD-RW & network download
• Alarm triggering screen tips, buzzer, PTZ, e-mail & FTP upload
• Support 8 SATA HDDs up to 24TB, 1 eSATA up to 12TB, 4 USB2.0
• Built-in web server, CMS(DSS/PSS) & DMSS

Technical Specifications:

• Main Processor: High performance Dual-core embedded microprocessor
• Operating System: Embedded LINUX
• System Resources: Pentaplex function: live, recording, playback, backup & remote access
• Control Mode: Front panel, USB mouse, IR remote control, Keyboard, Network
• IP Camera Input: 4 channel@D1 / 2 channel@720P / 1 channel@1080P
• IP Camera Supported List: Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG, SANYO, SONY, ONVIF
• Analog Camera Input: 16 channel, BNC(1.0Vp-p, 75?)
• Video Standard: PAL(625Line, 50f/s)
• Video Output: 1 HDM(video & audio)I, 1 VGA, 1 TV, 1 Spot, BNC(1.0Vp-p, 75?)
• Loop Output: 4 channel
• Audio Input: 4 channel, BNC(200-2800mV, 30KΩ)
• Audio Output: 1 channel, BNC(200-3000mV, 5KΩ)
• Bidirectional Talk: 1 channel Input, BNC(200-2800mV, 30KΩ), 1 channel Output, BNC(200-3000mV, 5KΩ)
• Display Split: 1/4/8/9/16/25
• Spot Split: 1/4
• Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
• Tour Display: Support
• Privacy Masking: 4 self-defined four-sided zones for privacy masking for each camera
• OSD: Camera title, time, video loss, camera lock, motion detection, recording
• Video/Audio Compression: H.264 / MPEG4 / G.711
• Recording Resolution: 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480) / HD1(352×576/352×480) / 2CIF(704×288/704×240) / CIF(352×288/352×240) / QCIF(176×144/176×120)
• Recording Speed: IP: Max 400fps@D1 / 200fps@720P / 100fps@1080P
• Analog: Max 400fps@D1 + 400fps@CIF
• Recording Bit Rate: IP: 32~8192 Kb/s, Analog: 32~4096Kb/s
• Recording Quality: CBR, VBR(1~6 level, level 6 is the best)
• Recording Mode: Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
• Recording Priority: Manual >Alarm >MD >Regular
• Recording Interval: 1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec.
• Trigger Events: Recording, PTZ movement, Tour, Alarm, Email, FTP, Spot, Buzzer & Screen tips
• Motion Detection: Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
• Video Loss & Camera Blank: Support
• Alarm Input: 4 channel
• Relay Output: 6 channel
• Playback Channel: 1/2/4/All
• Search Mode: Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
• Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom(any size)
• Backup Mode: Flash drive/ USB HDD/ USB CD&DVD-RW / eSATA Device / Built-in SATA burner/ Network download
• Ethernet: RJ-45 port (10/100M/1000M)
• Network Functions: HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR)
• Max Remote Users: 20 Users simultaneously
• Remote Operation: Monitor, PTZ control, Playback, System setting, File download, Log information
• Hard Disk: 8 SATA ports, 8 HDDs or 6 HDDs + 1 CD/DVD-RW, Up to 24TB
• eSATA: 4 External SATA ports, up to 12TB
• Space Occupation: Audio: 28.8MB/H, Video: 56~3600MB/H
• HDD Management: HDD Group, HDD hibernation technology, HDD faulty alarm & Raid(Redundancy)
• USB Interface: 4 USB2.0 ports, For mouse control & backup
▪• RS232: Dahua keyboard, PC communication
▪• RS485: PTZ control
• Power Supply: AC 100~240 V, 50/60 Hz
• Power Consumption: 25W
• Working Environment: -10 ~+55°C / 10~90%RH / 86~106kpa
• Dimension: 2U, 440mm×460mm×89mm(W×D×H)
• Weight: 6.5KG(without HDD)
